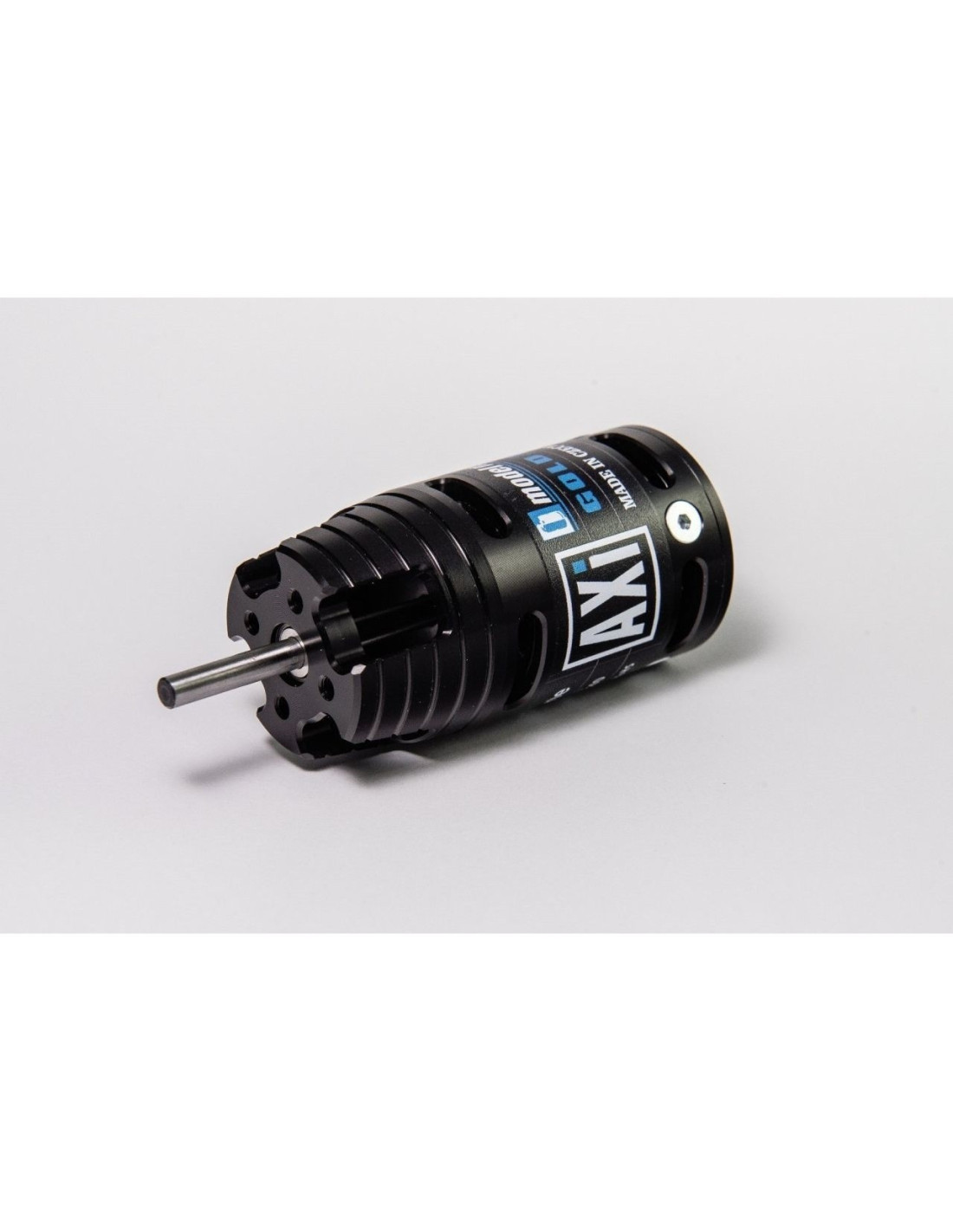

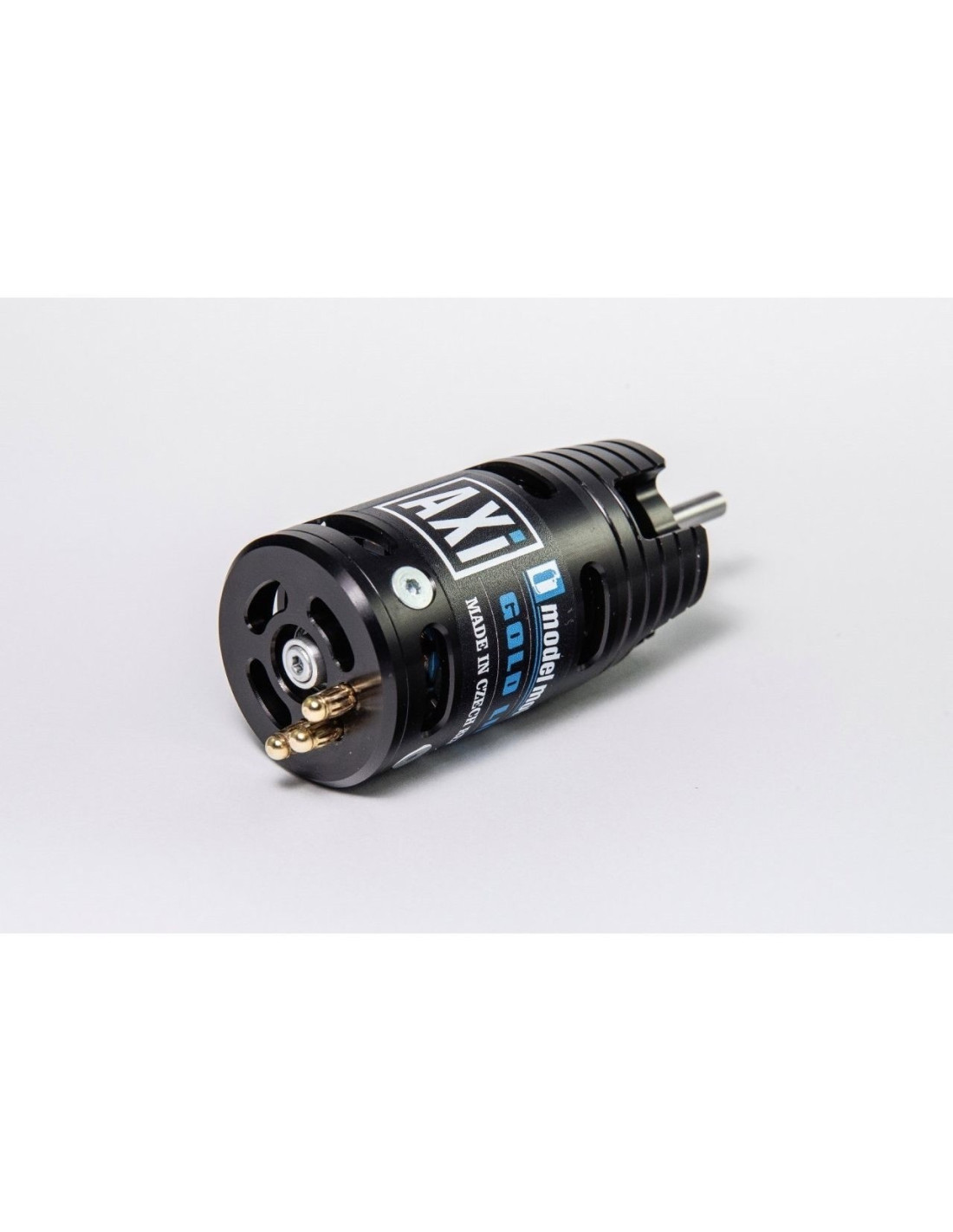

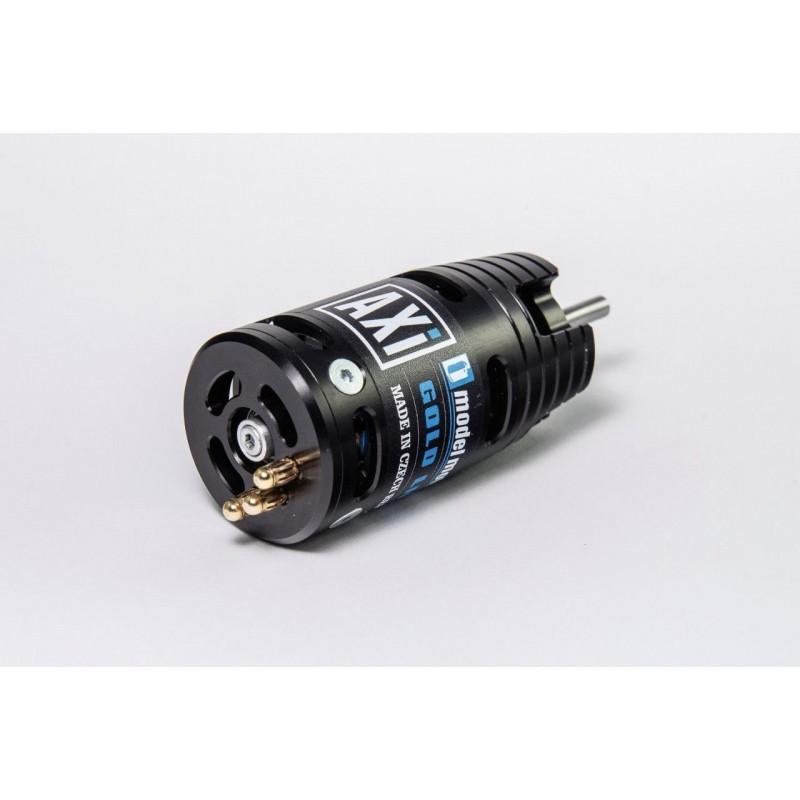

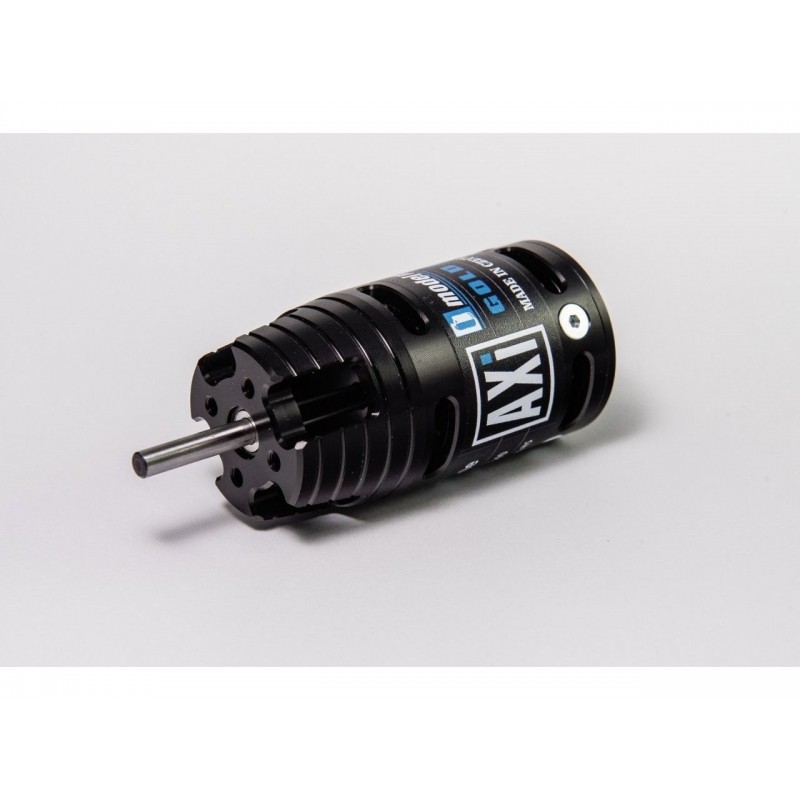

AXI 2220/20 CYCLONE motor (129g, 720kv, 300W)

Last items in stock

€79.08

Tax included

Axi offers this new range of shrouded brushless motors called CYCLONE with a rear exit connector.the rotating cage of this motor has cooling fins to improve its efficiency.CYCLONE motors are ideal for easy installation in the nose of your glider.the 4mm hardened steel shaft is supported by three ball bearings, and the overall robust construction ensures a long life.(sold without any accessories)

Technical specifications:

Recommended number of cells: 3S LiPo
Number of revolutions per Volt: 720 RPM/V
Max power: 300W
Max. efficiency: 87
Max efficiency consumption: 18-24A (>75%)
No load current: 0.4A
Internal resistance: 112 mOhm

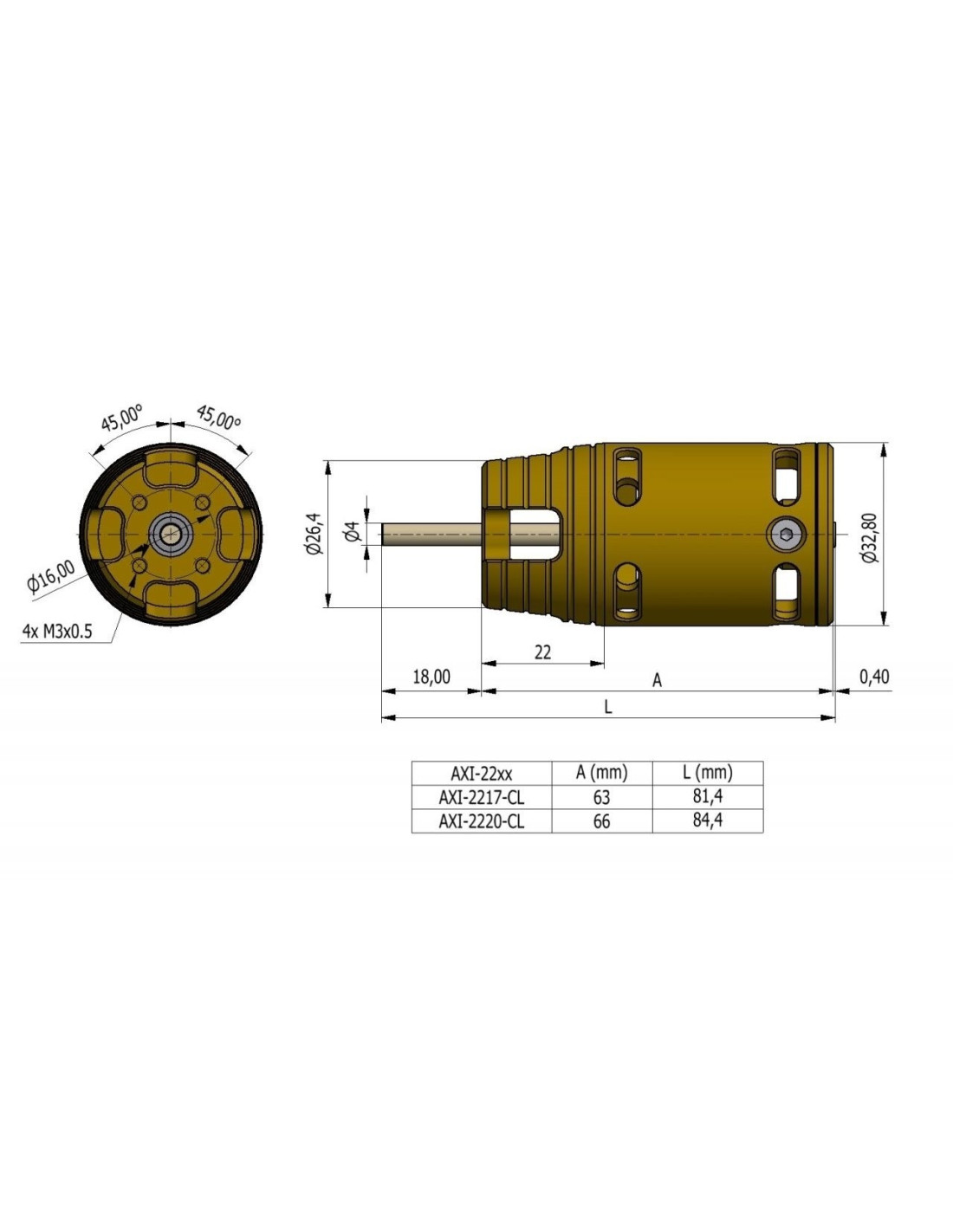

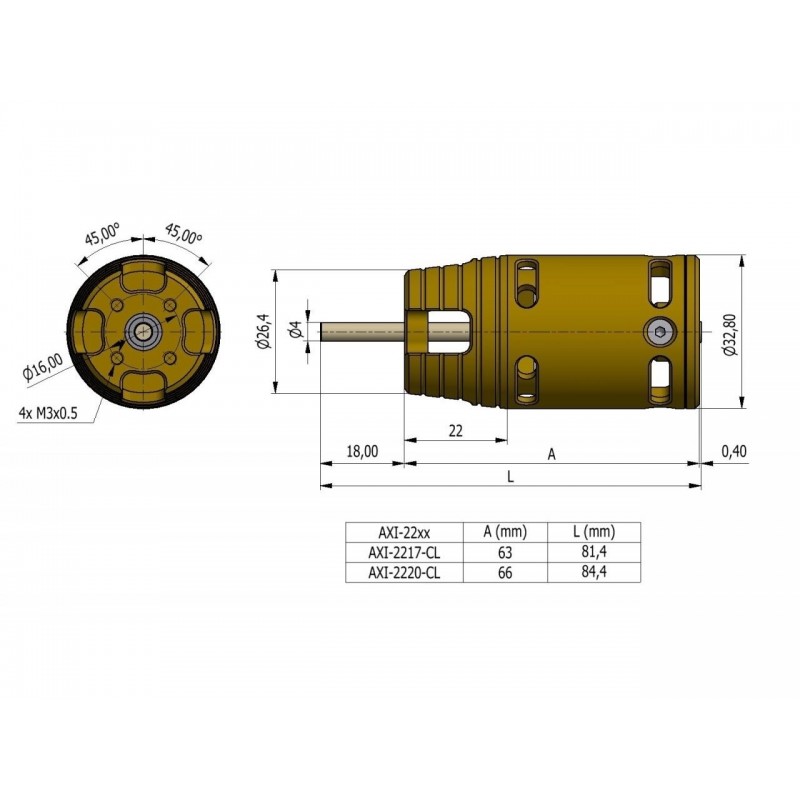

Dimensions: Ø32.8x66 mm
Motor axis diameter: 4 mm
Weight: 129 gr
Recommended propellers: 12x9" or 14x6" in 3S

Engine weight: from 100g to 599g
Motor power in Watts: 300
Revs/ minute Kv: 720
Type of tree: standard

Reference 123-222020C
