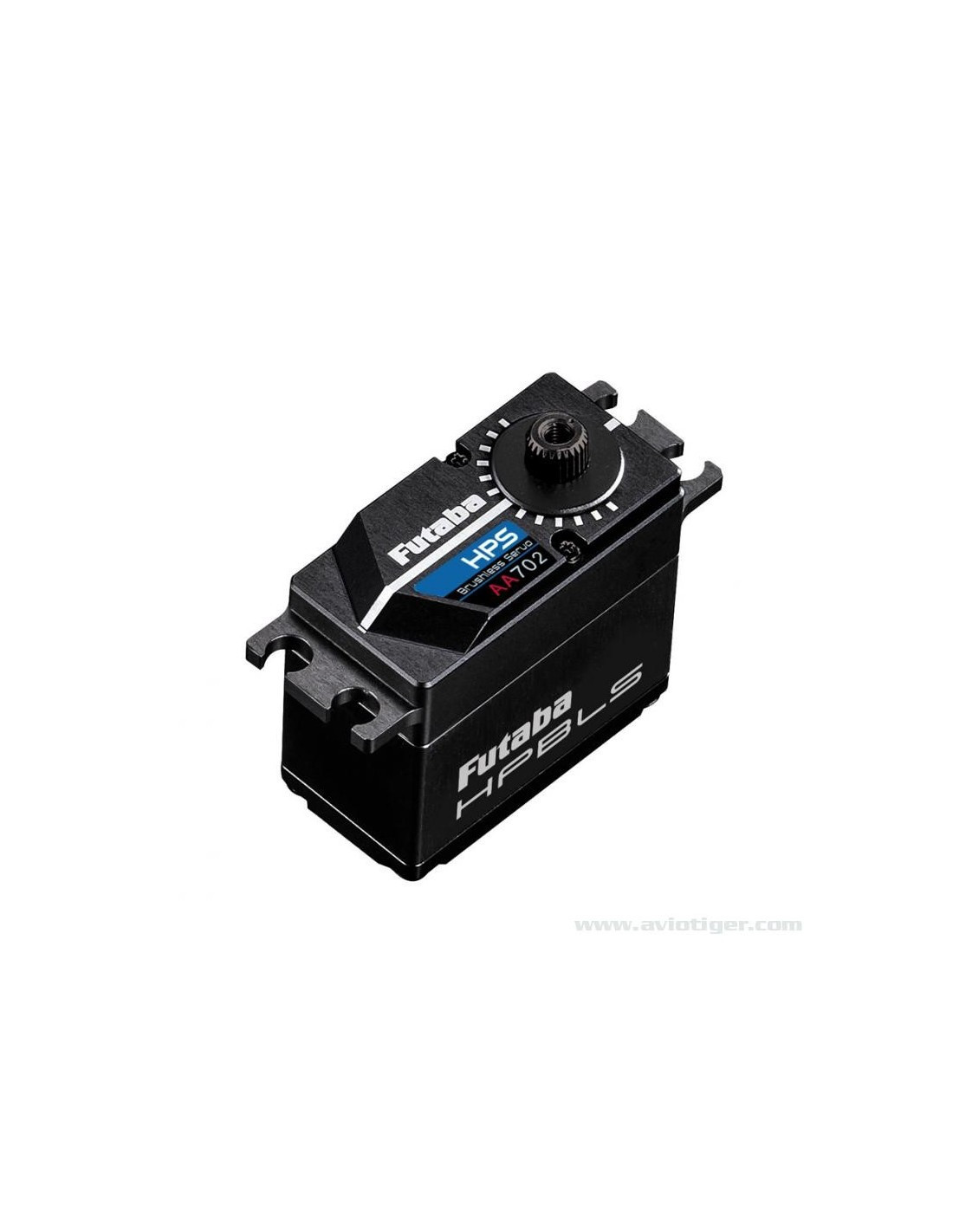

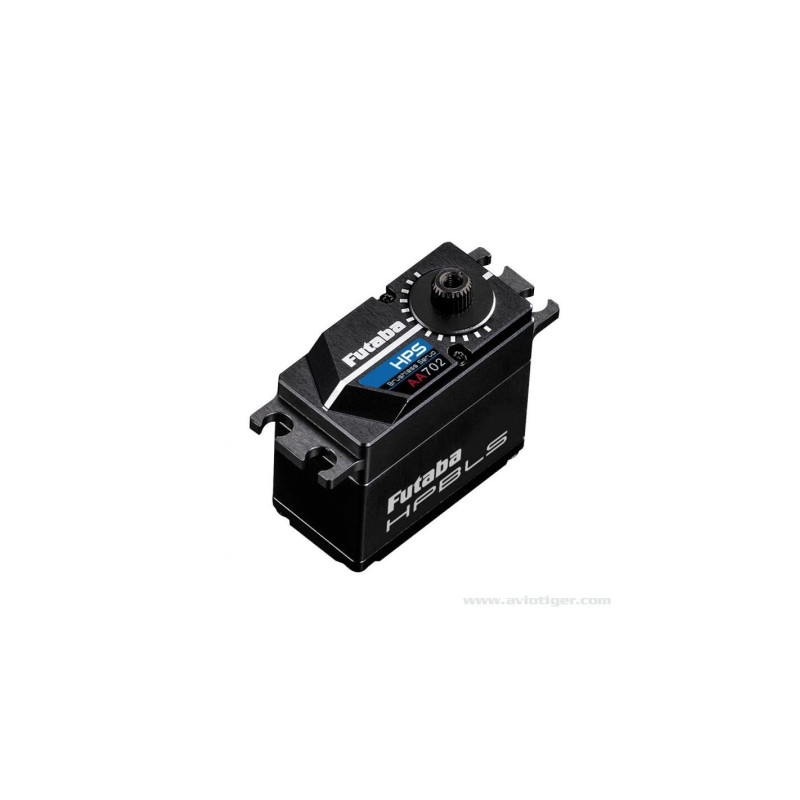

FUTABA SERVO HPS-AA702

Replaces the HPS-AA701 servo. Same features but uses a new-generation microprocessor.
New FUTABA servo for aircraft with metal gearing.
New HPS brushless motor technology specially designed for higher performance and better cooling. (SR compatible)

Technical specifications:
- High-performance digital HPS servo S.BUS2
- Alu housing
- Metal gearing
- Brushless HPS motor technology
- High voltage
- Ball bearings (x2)
- Low-wear potentiometer
- High resolution
- High feedback accuracy

With the new HPS technology, energy consumption is reduced over the entire operating time. Like all S.BUS2 servos, the HPS-AA701 can be connected to all conventional receivers with PWM modulation, and can be optimally adapted to the respective application conditions by programming.

This servo can be programmed in various ways:
1. With the handy SBC-1 programmer
2. On the PC with the CIU-3 USB adapter
3. On the transmitter's S.BUS connection

The following parameters can be set:
- S. BUS channel assignmentBUS channels
- Servo rotation direction
- Soft start (on/off)
- Mode selection in case of Hold or Free signal failure
- Soft servo operation (on/off)
- Servo position (servo tester)
- Servo center adjustment +/- 300 µs (approx. 30 degrees)
- Servo speed, 0.39 - 9 seconds per 45 degrees
- Deadband definition (deadband)
- Left and right servo travel adjustment separately, approx. 50 to 175%
- Starting power
- Damping
- Holding power

Features:
Dimensions :40.5 x 21.0 x 39.4 mm
Power supply: 6V-7.4V
Weight: 44 g
Speed at 6.6V: 0.08s/60°
Speed at 7.4V: 0.075s/60°

Torque at 6.6V: 45 kg/cm
Torque at 7.4V: 49.0 kg/cm
Application: large-scale aircraft for ailerons, for example!
