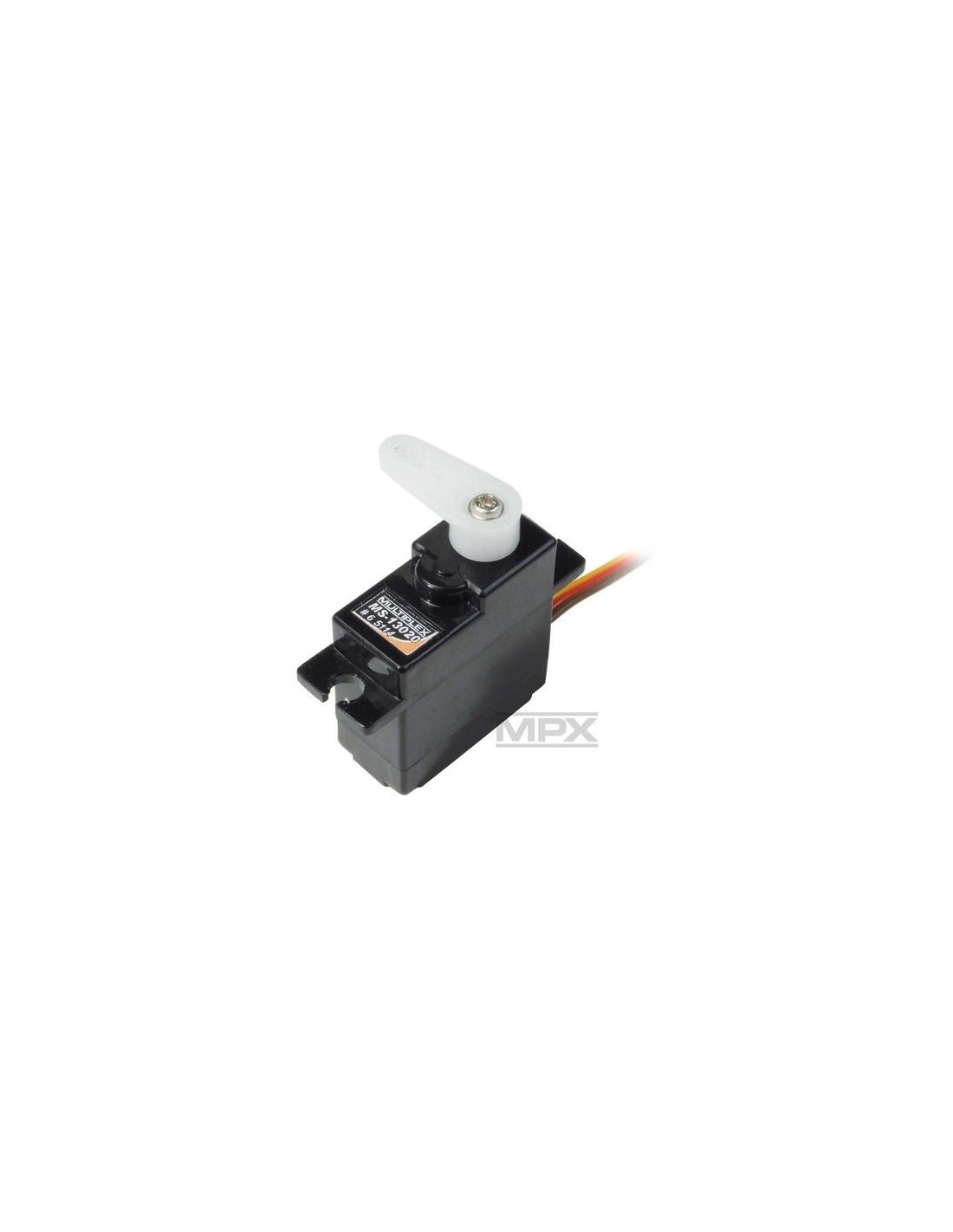

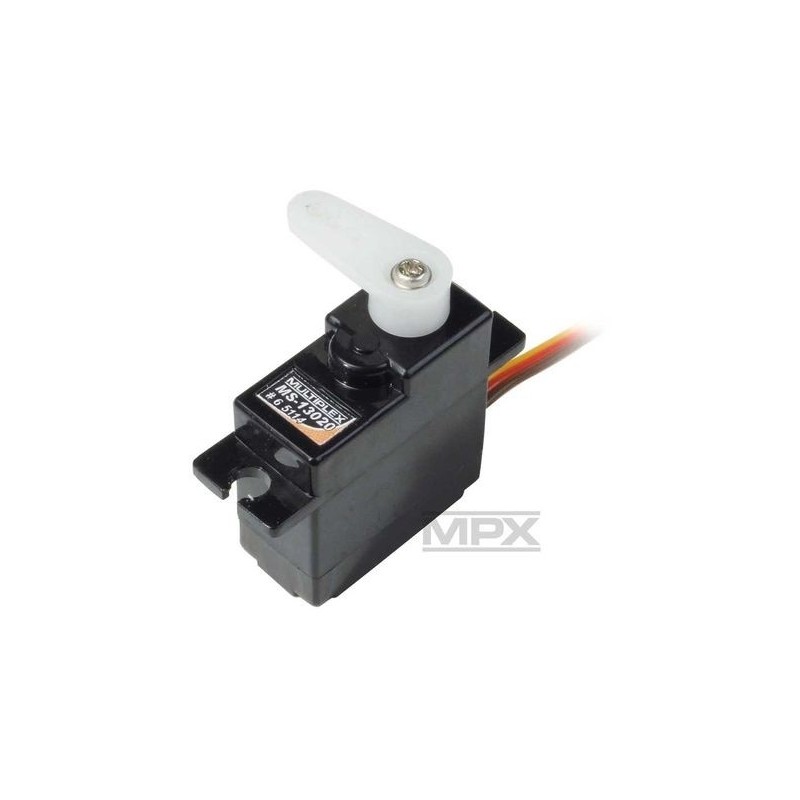

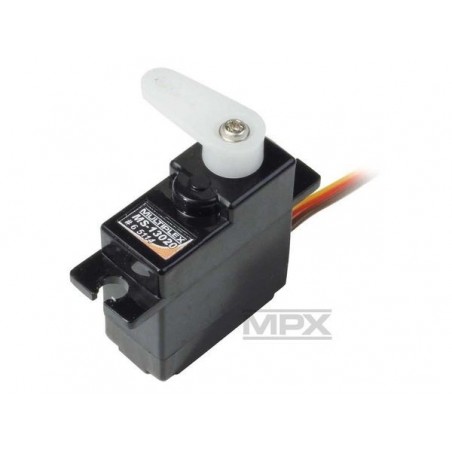

MS-13020 Multiplex Servo

Last items in stock
€14.08
Tax included
MS-13020 Multiplex servo, delivered with spreaders + screws (for Extra 300S Multiplex)

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data

  • Torque : 4.8V 1.8 kg-cm / 6V 2.0 kg-cm
  • Speed : 0.18s/60°@4.8V / 0.15s/60°@6V
  • Dimensions : 28 x 13.2 x 29.6 mm
  • Voltage range : 4.8~6.0V
  • Weight: approx. 15g
  • Wire length: 180mm
  • UNI plug
  • Nylon gears

ms_12016_multiplex

Thickness in mm (Servos)
13.2
Torque in kg.cm (servos)
2
Speed sec / 60° (servos)
0.15
Pinions (servos)
Plastic
Bearing (servos)
no
Technology (sevos)
Analog
HV (servos)
no
Weight in g (servos)
15
064-65114
4041033111147
4041033111147
