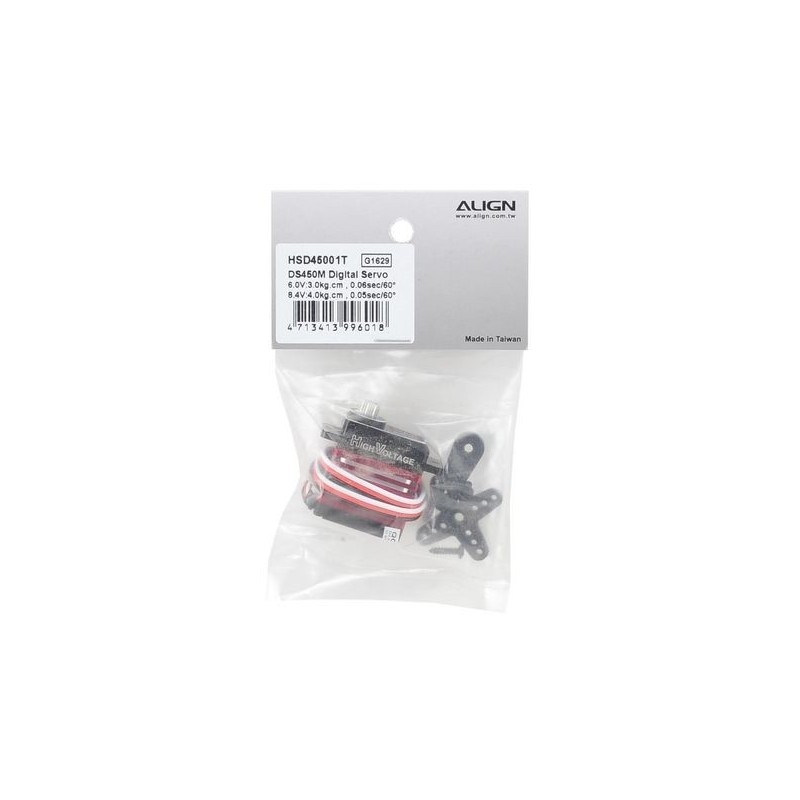

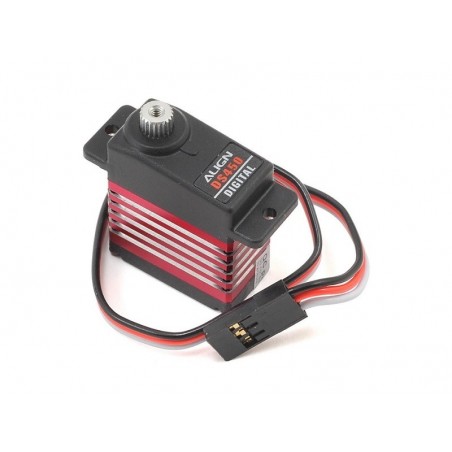

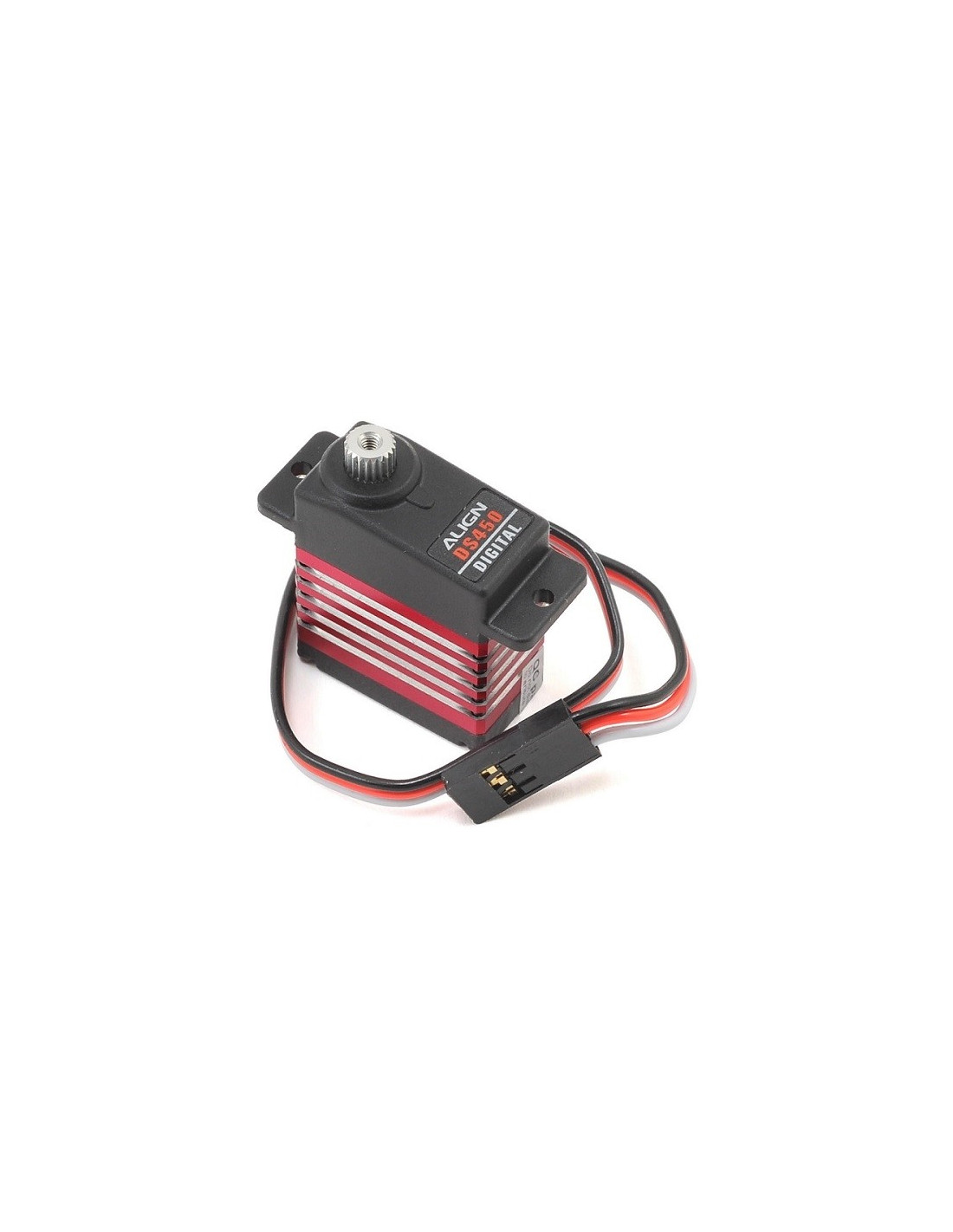

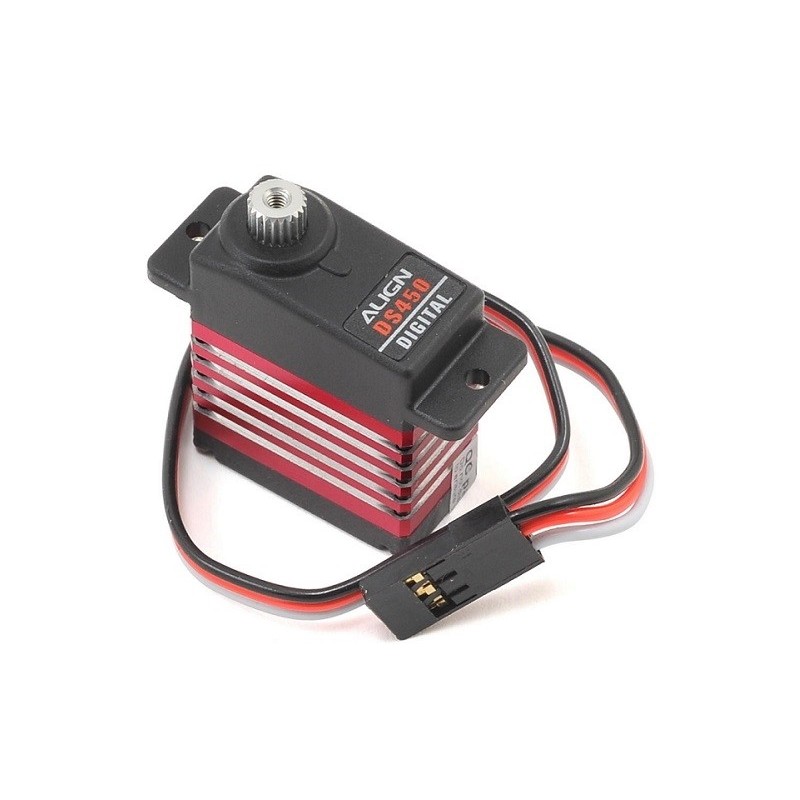

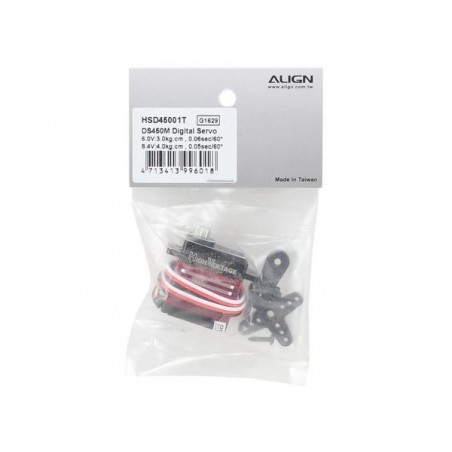

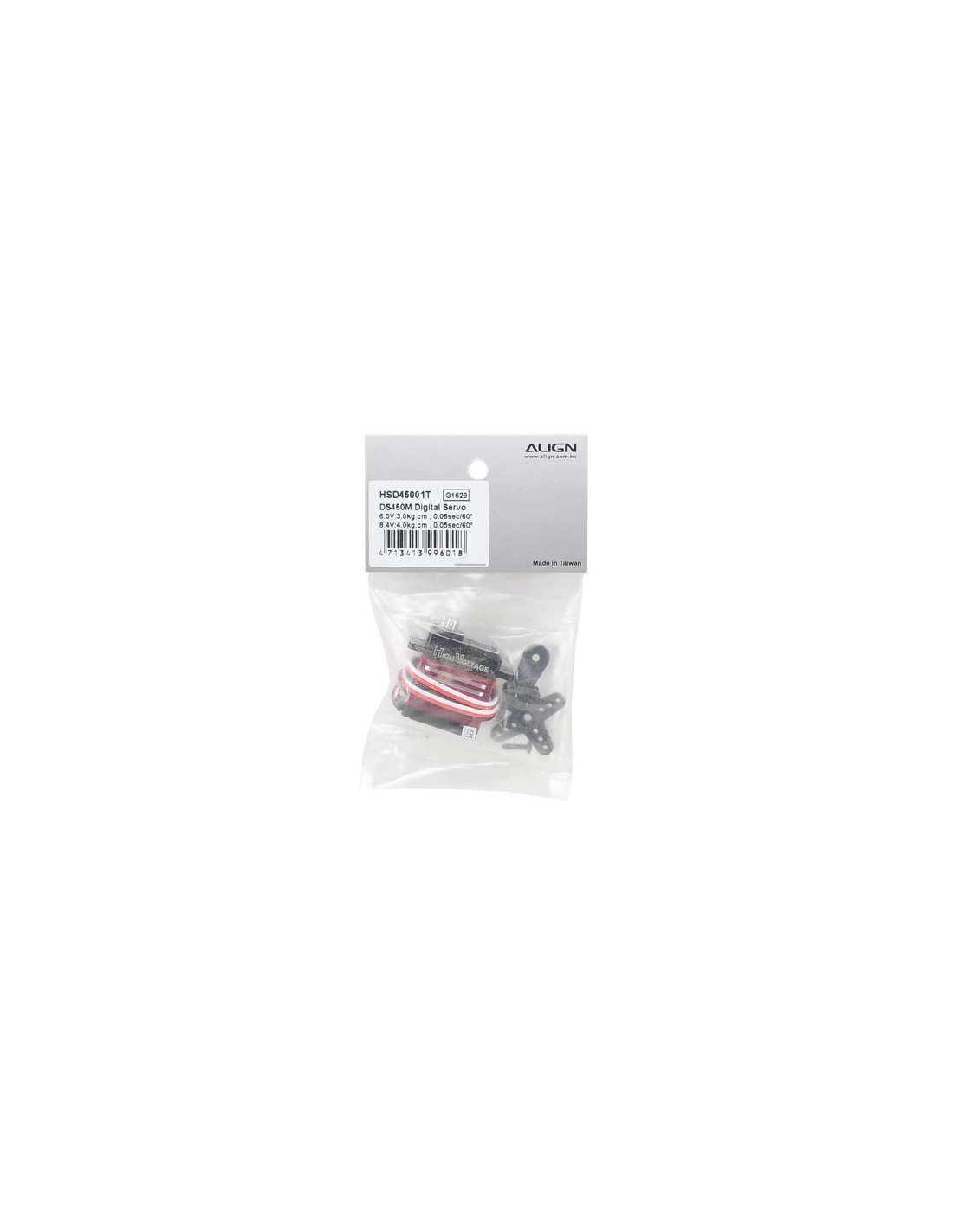

Align DS450 digital servo (cyclic - HV) (20g, 4.0kg.cm, 0.05s/60°)

€31.16
Tax included
Fast, accurate and powerful digital servo for helicopters and other applications. The gears are made of metal for high rigidity and good shock resistance.plastic/aluminum housing, supports HV power supply (2S LiPo).suitable for T-Rex 250/450 swashplate.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications

  • Torque : 3.0kg.cm (6.0V), 4.0kg.cm (8.4V)
  • Speed : 0.06sec/60°(6.0V), 0.05sec/60° (8.4V)
  • Input voltage : DC 6.0-8.4 V
  • Temperature range: -20°C~+60°C
  • Dimensions: 22.8 x 12 x 31mm
  • Mass: 17.5g
  • Pulse to neutral: 1520μs
  • Gears: metal
Thickness in mm (Servos)
12
Torque in kg.cm (servos)
4
Speed sec / 60° (servos)
0.05
Pinions (servos)
Metal
Bearing (servos)
no
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
17.5
088-HSD45002
4713413996032
4713413996032
No reviews
Comments (0)
No customer reviews for the moment.
