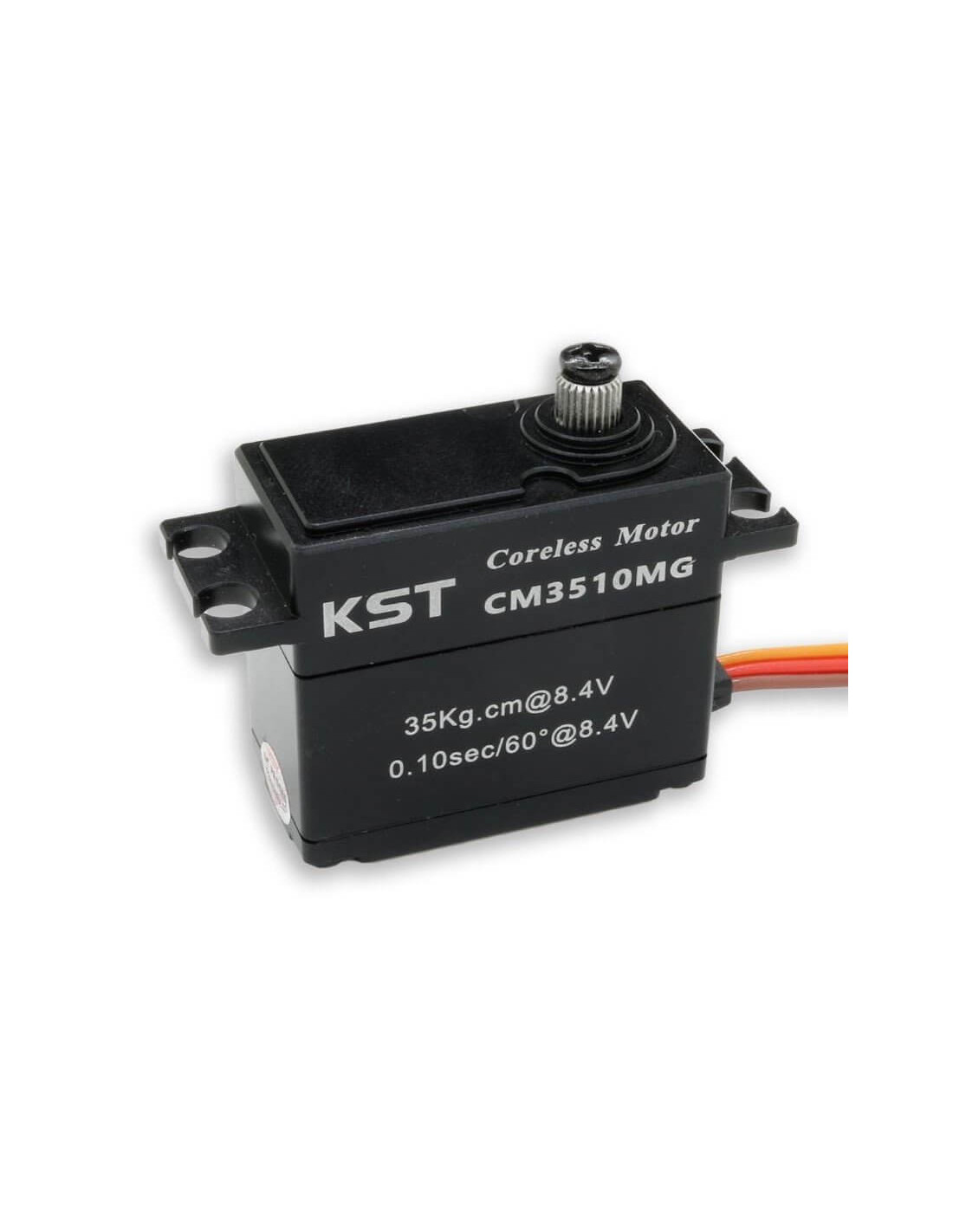

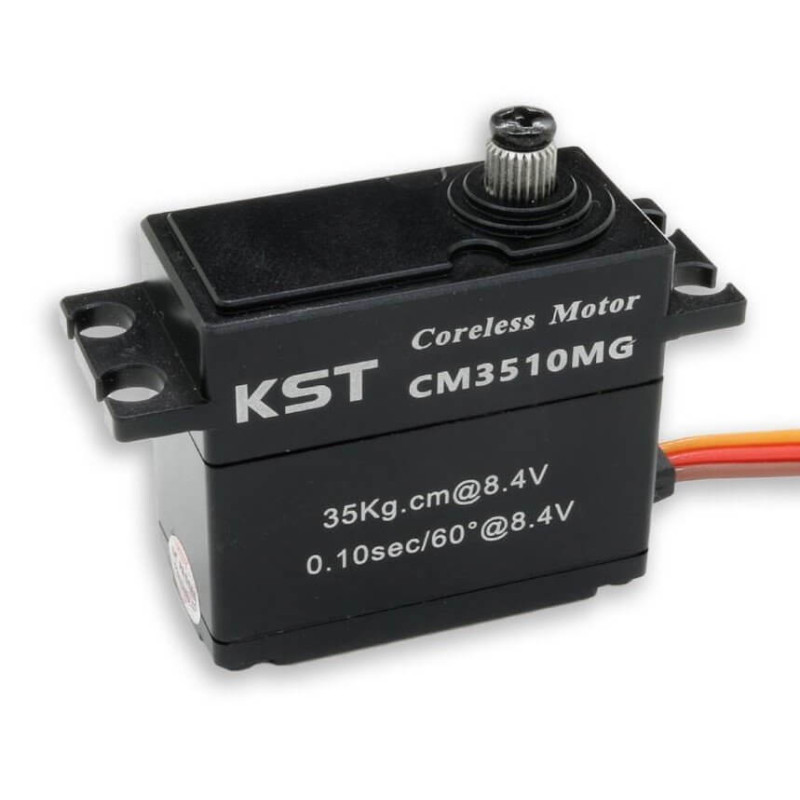

Coreless servo KST-CM3510MG
Coreless servo KST-CM3510MG

Coreless servo KST-CM3510MG

€49.08
Tax included

The CM3510MG coreless servo features high efficiency and fast response, perfect for 1/10 Scale RC Rock Crawlers and 1/7th to 1/8th RC Monster Trucks & Buggies. It also boasts an ultra-high 35Kgfcm of torque, plus excellent 0.10sec/60° speed. The CM3510MG is also IP65 waterproof, making it ideal for tough conditions. The CM3510MG is one of the highest-quality servos on the market today for this kind of application.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features

  • High-quality torque and excellent speed
  • IP65 Waterproof
  • Programmable
  • Aluminum case
  • Perfect for 1/10 Scale RC Rock Crawlers and 1/7th to 1/8th RC Monster Trucks & Buggies

Specification

  • Voltage: DC7.4V
  • Voltage Range: DC4.8V-8.4V
  • Torque: 20Kgf.cm@4.8V / 25Kgf.cm@6.0V / 30Kgf.cm@7.4V / 35Kgf.cm@8.4V
  • Speed: 0.20sec/60°@4.8V / 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.10sec/60°@8.4V
  • Stalling Current: 2.10A@4.8V / 2.90A@6.0V / 3.30A@7.4V / 3.65A@8.4V
  • Working Frequency: 1520us/333Hz
  • Default Travel Angle: ±50° =100° Total
  • Temperature Range: -10℃......+65℃
  • Soft Start: Yes
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Metal gear
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB
  • Waterproof: IP65
  • Case Dimensions: 40.5mm*20mm*38mm±0.2mm
  • Weight: 70g±10%
Thickness in mm (Servos)
20
Torque in kg.cm (servos)
35
Speed sec / 60° (servos)
0.1
Pinions (servos)
Metal
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
70
153-CM3510MG
4897073542478
No reviews
Comments (0)
No customer reviews for the moment.
