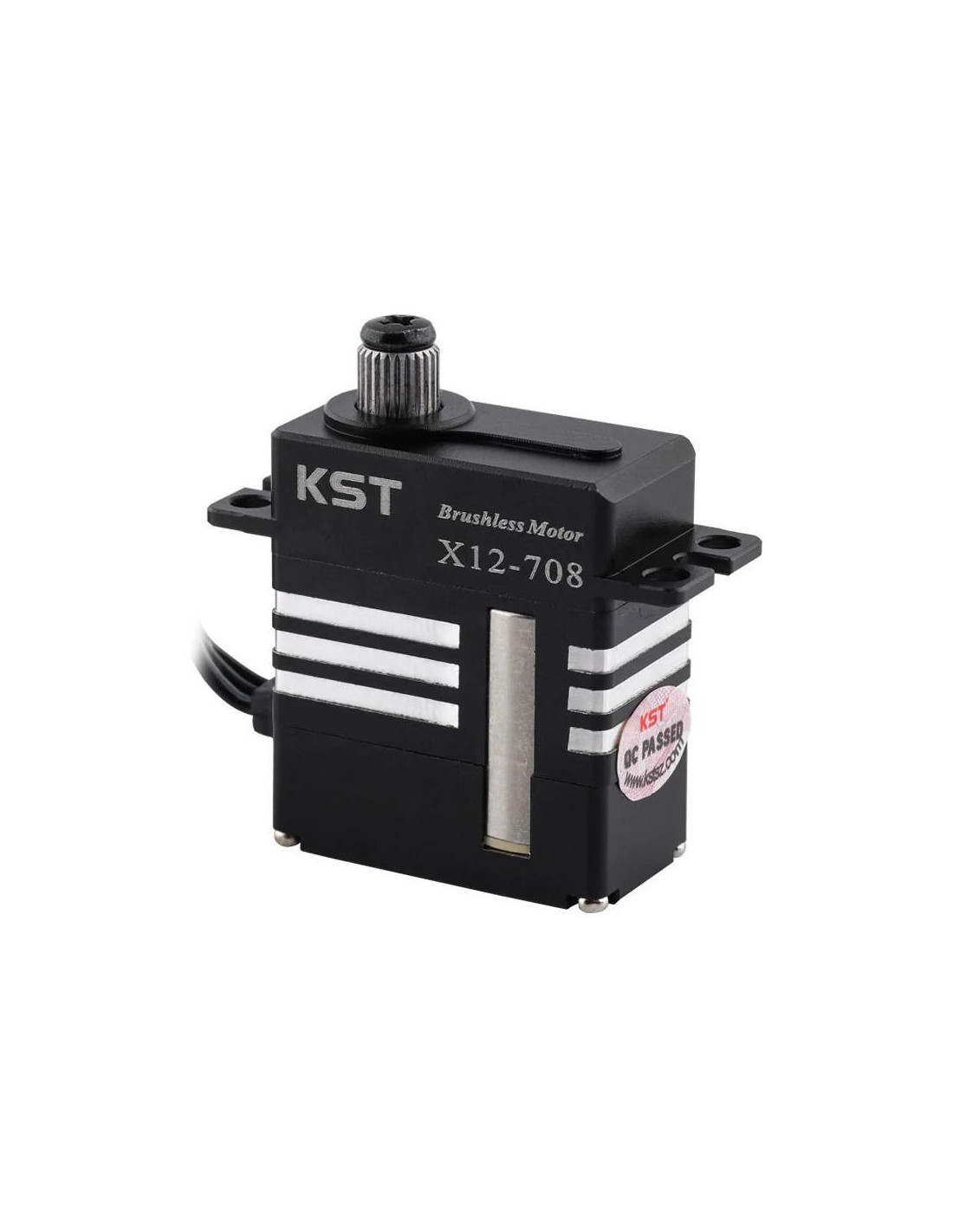

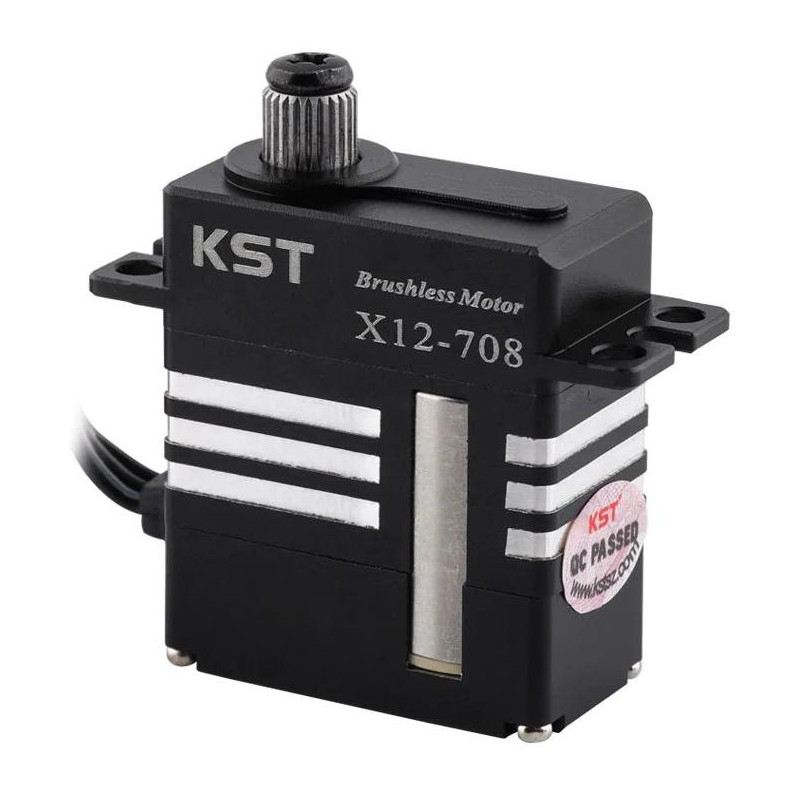

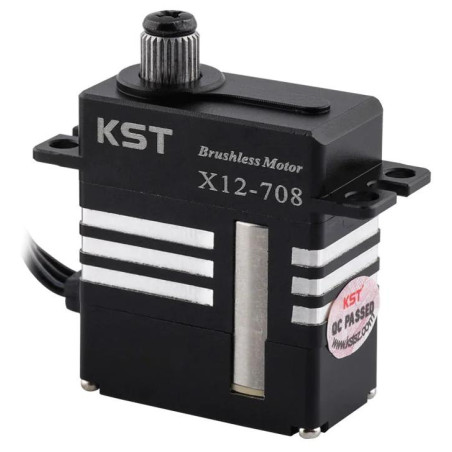

KST X12-708 brushless servo
KST X12-708 brushless servo

KST X12-708 brushless servo

€49.08
Tax included

Everything you ever wanted in a micro servo! Introducing the new, revised and innovative X12-708 Micro DC brushless servo. It's now possible to program and tune a micro servo to your liking. The new design provides a powerful, faster and more efficient servo. It achieves a torque of up to 9.3 kg.cm and a speed of up to 0.07 sec/60deg. The lowered wires apply a much more elegant and even more modern look. This concludes other incredible X12 servos in the KST family.

Ideal for fuselage installations on F3J, F3F and F3B models. Great for a 380/420 propeller size as a cyclic servo.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features:

  • Brushless DC motor
  • Programmability
  • Toque up to 9.3 kg.cm
  • Black CNC aluminum housing
  • Speeds up to 0.07 sec/60deg
  • Hardened steel gears
  • Dark wiring
  • Cyclic servo for helicopter size 450

Specification:

  • Component: X12-708 brushless micro servo
  • Nominal voltage: DC7.4V
  • Voltage range: DC6.0V-8.4v
  • Operating frequency: 1520us/333KHz
  • Default displacement angle: ± 50° = 100° Total
  • Ambient temperature: -20 ℃ ...... + 65 ℃
  • Soft start: programmable
  • Programmable: Yes
  • Housing material: aluminum alloy
  • Motor type: brushless DC motor
  • Gear material: hardened steel
  • Position sensor: potentiometer
  • Housing dimensions: 23mm * 12mm * 27.5mm:0.2mm
  • Weight: 20g ± 10%
  • Torque: 6.3Kg.cm@6.0V, 8.6Kg.cm@7.4V, 9.3Kg.cm@8.4v
  • Speed: 0.09sec/60 ° @ 6.0V, 0.08sec/60 ° @ 7.4V, 0.07sec/60 ° @ 8.4V
Thickness in mm (Servos)
12
Torque in kg.cm (servos)
9,3
Speed sec / 60° (servos)
0,07
Pinions (servos)
Metal
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
20
153-X12-708
4897073542218
No reviews
Comments (0)
No customer reviews for the moment.
