Proxxon TBM 220 - 3 speed bench drill with 6 collets from 1,0 to 3,2 mm

€129.82
Tax included

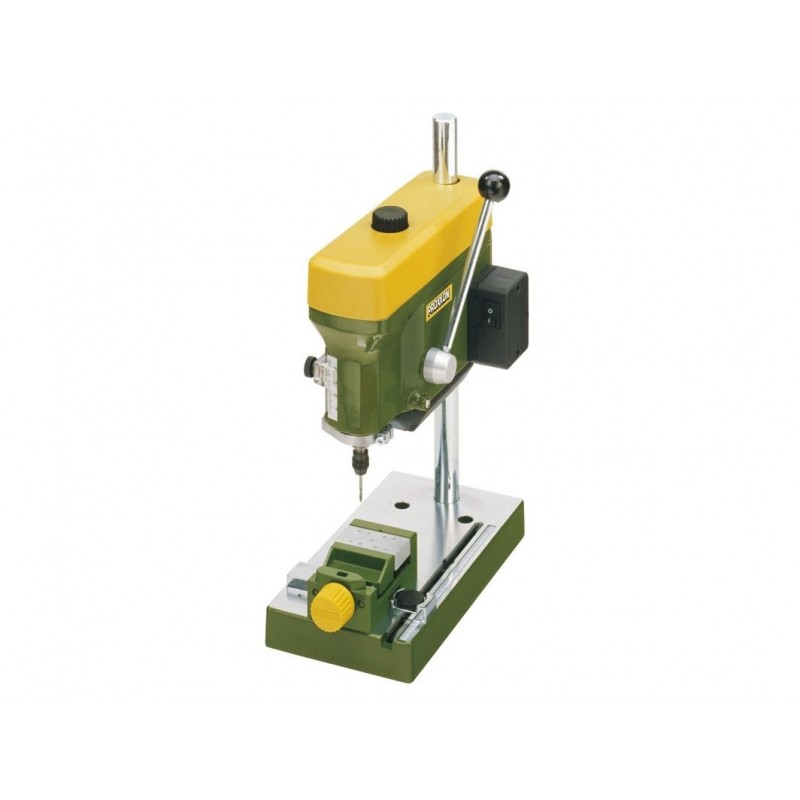

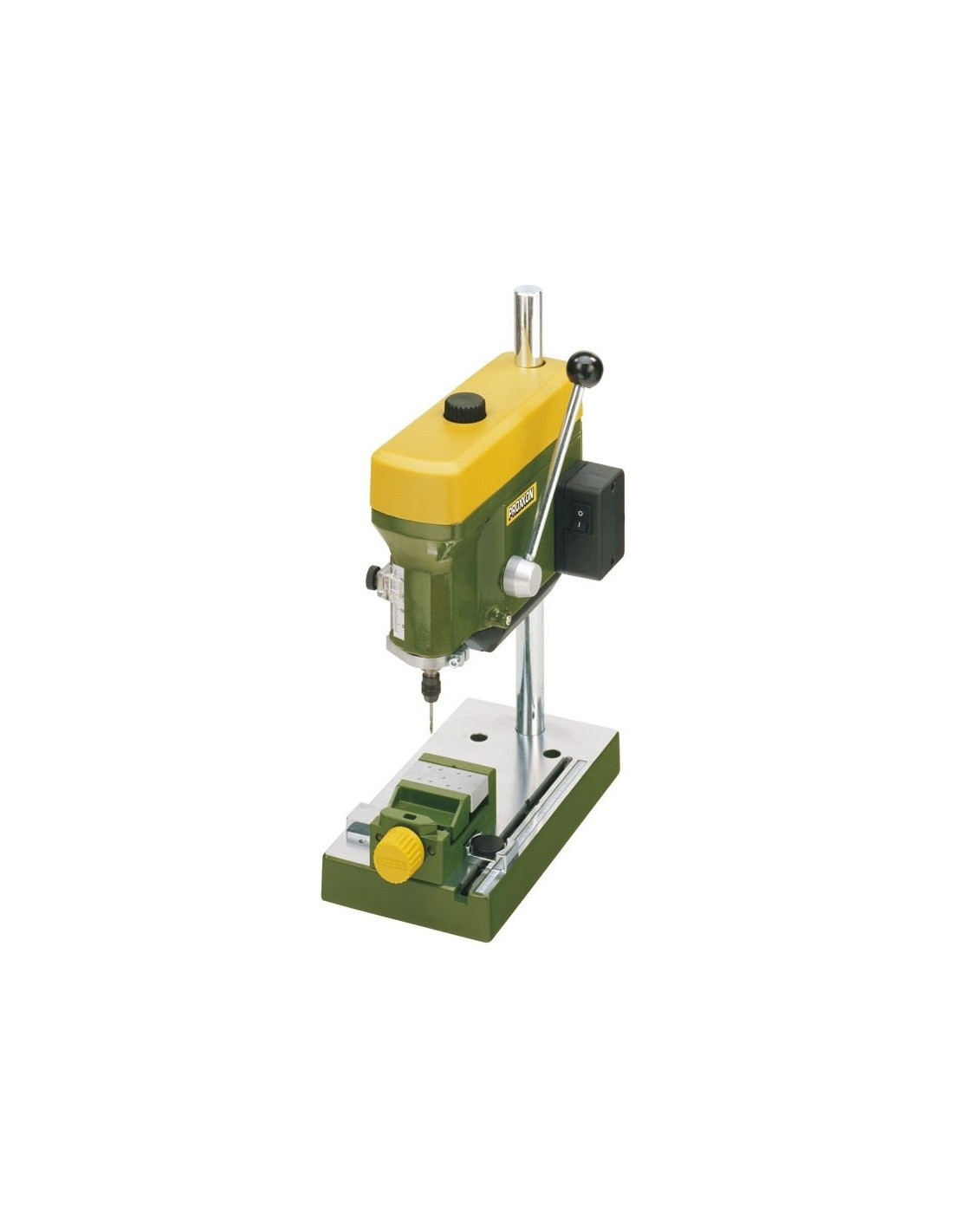

TBM 220 Proxxon Bench Top Drilling MachineDie-cast, flat milled aluminum work table (220 x 120 mm) with parallel stop and scale and threaded holes for mounting the KT 70 MICRO coordinate table.Solid steel column (20 x 340 mm). Die-cast aluminium console with guides and spindle adjustments. High quality motor, VDE certified, extremely quiet and very durable. 3-speed belt drive. The movement of the belts provides 3 speeds and triple torque at low rpm. Convenient drill depth indicator with adjustable stop.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data:

230 V. 85 W. 50 - 60 Hz. Speeds: 1.800, 4.700 and 8.500 rpm. Reach (from the inside of the column to the center of the tool) 140 mm. Spindle sleeve travel: 30 mm. Accessory gripping by 6 MICROMOT collets in triple-slot steel (1 - 1,5 - 2 - 2,4 - 3 and 3,2 mm). 3/8" thread for the attachment of a chuck with toothed ring. Weight 3,3 kg.

3 speed settings per belt shift for triple torque at low speed.
Convenient drilling depth indication with adjustable stop.
The advantageous MS 4 machine vice made of die-cast zinc (not supplied with TBM 220).
Supplied with 6 steel MICROMOT collets.
