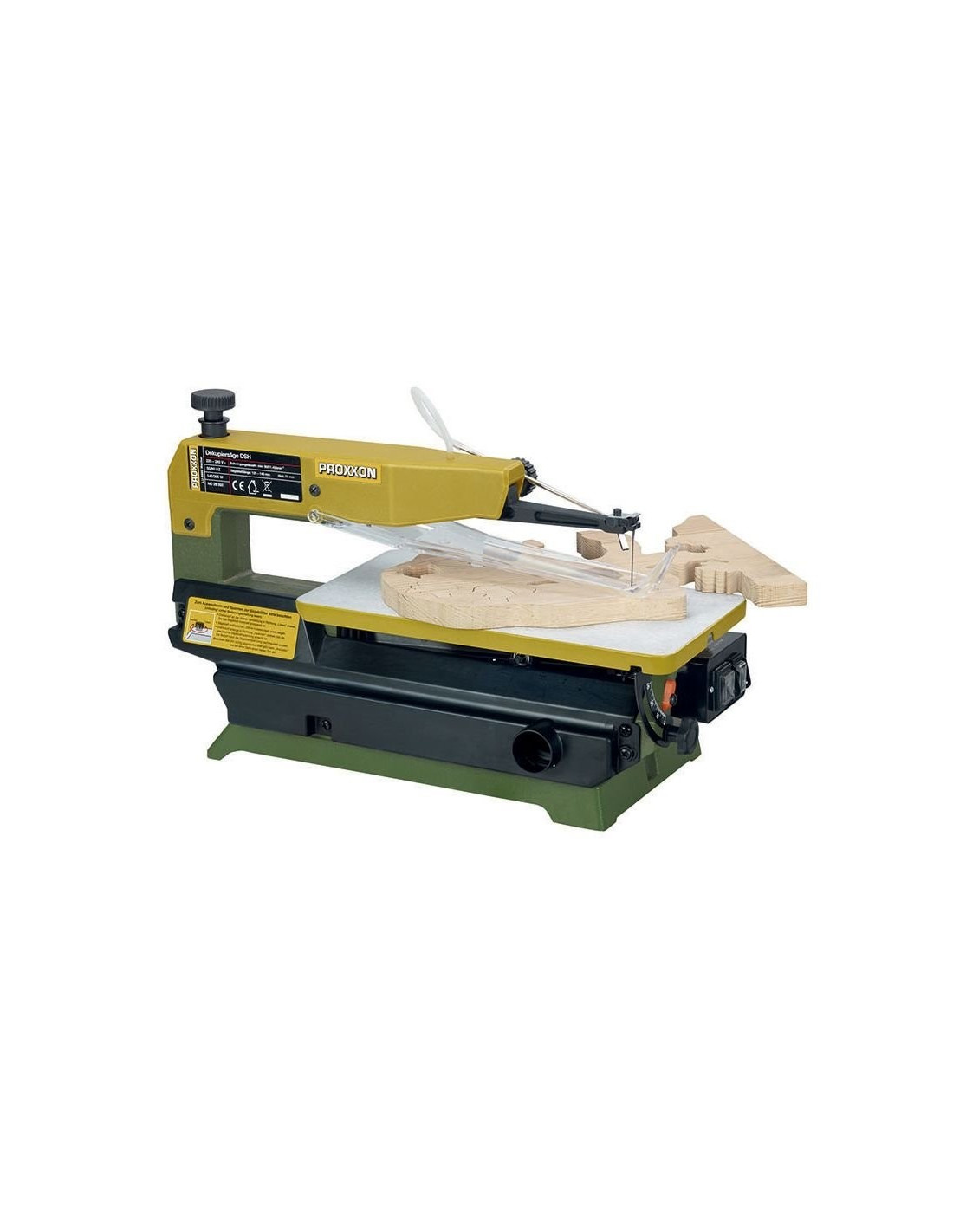

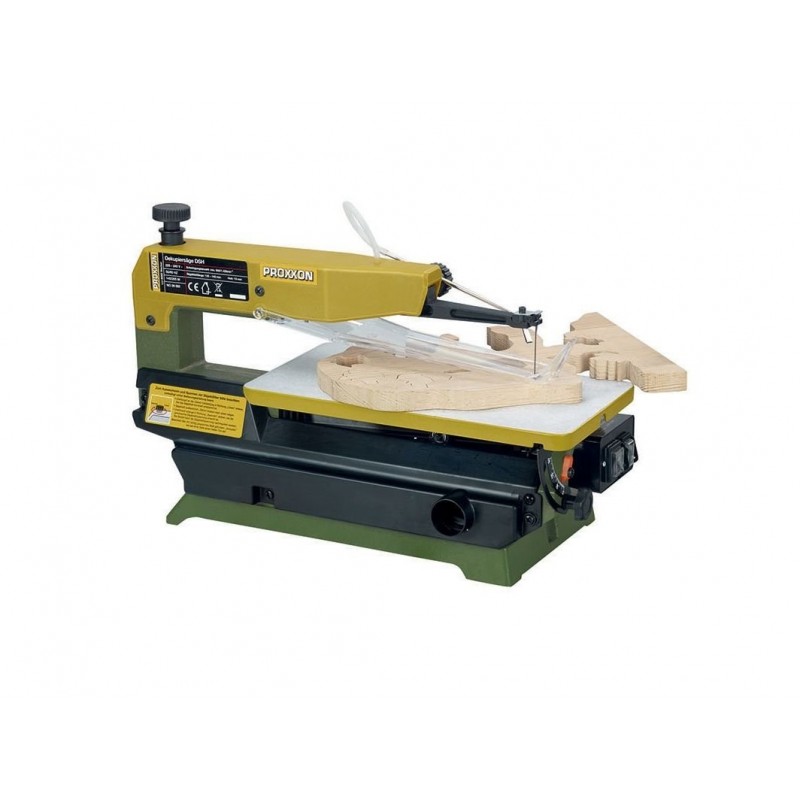

Proxxon DSH - 2 Speed Cutting Saw

Technical data:

230 V. Powerful brushless motor 2 speeds (205 W). Adjustment 900 or 1.400 rpm. Stroke 19 mm. Reach 400 mm. Maximum cutting depth 50 mm, 25 mm for a 45° mitre. Weight approx. 17 kg.

Saw blade holder with pin. Also for mounting normal jigsaw blades (without pin).

The DSH is equipped with an outlet for a suction hose. For clean work. We recommend the use of our compact workshop vacuum cleaner CW-matic.

Please note:

When cutting very hard workpieces (iron), the teeth wear relatively quickly in the contact area. The upper part of the blade teeth can be used to increase the contact area of the workpiece.
Supercut fine blades without spur. 130 mm.

Recommended accessories (optional)

For hard and soft wood, plastic, plexiglass and soft non-ferrous metal.

Coarse teeth (No. 9: 14 teeth on 25 mm):
NO 28 116 130 x 1,50 x 0,48 mm 12 pieces

Medium tooth (No.5: 17 teeth on 25 mm):
NO 28 117 130 x 1,20 x 0,38 mm 12 pieces

Fine teeth (No.3: 20 teeth on 25 mm):
NO 28 118 130 x 0,80 x 0,34 mm 12 pieces

For hard materials like iron and PERTINAX.

Medium toothing (No.5: 36 teeth on 25 mm):
NO 28 112 130 x 0,85 x 0,4 mm 12 pieces

Fine tooth (No.3: 41 teeth on 25 mm):
NO 28 113 130 x 0,75 x 0,36 mm 12 pieces

Ultra fine teeth (No.1: 50 teeth on 25 mm):
NO 28 114 130 x 0,6 x 0,3 mm 12 pieces

Round blade. 130 mm. With flat ends (without pin).

For circular cuts from 1.5 mm. Cutting on all sides, no turning of the workpiece required (important for large workpieces). For plastic, soft and hard wood.
NO 28 747 130 x 1,2 mm 12 pieces

Standard blades with pin for fine cuts. 127 mm.

Coarse tooth (10 teeth on 25 mm):
For soft and hard wood, plastic and other soft and especially thick materials.
NO 28 741 127 x 2,61 x 0,51 mm 12 pieces

Normal toothing (18 teeth on 25 mm):
For fine materials, soft and hard wood, plastic.
NO 28 743 127 x 1,86 x 0,24 mm 12 pieces

Fine toothed (25 teeth on 25 mm):
For non-ferrous metals, fiberglass, plastic, wood and Plexiglas.
NO 28 745 127 x 1,76 x 0,25 mm 12 pieces
