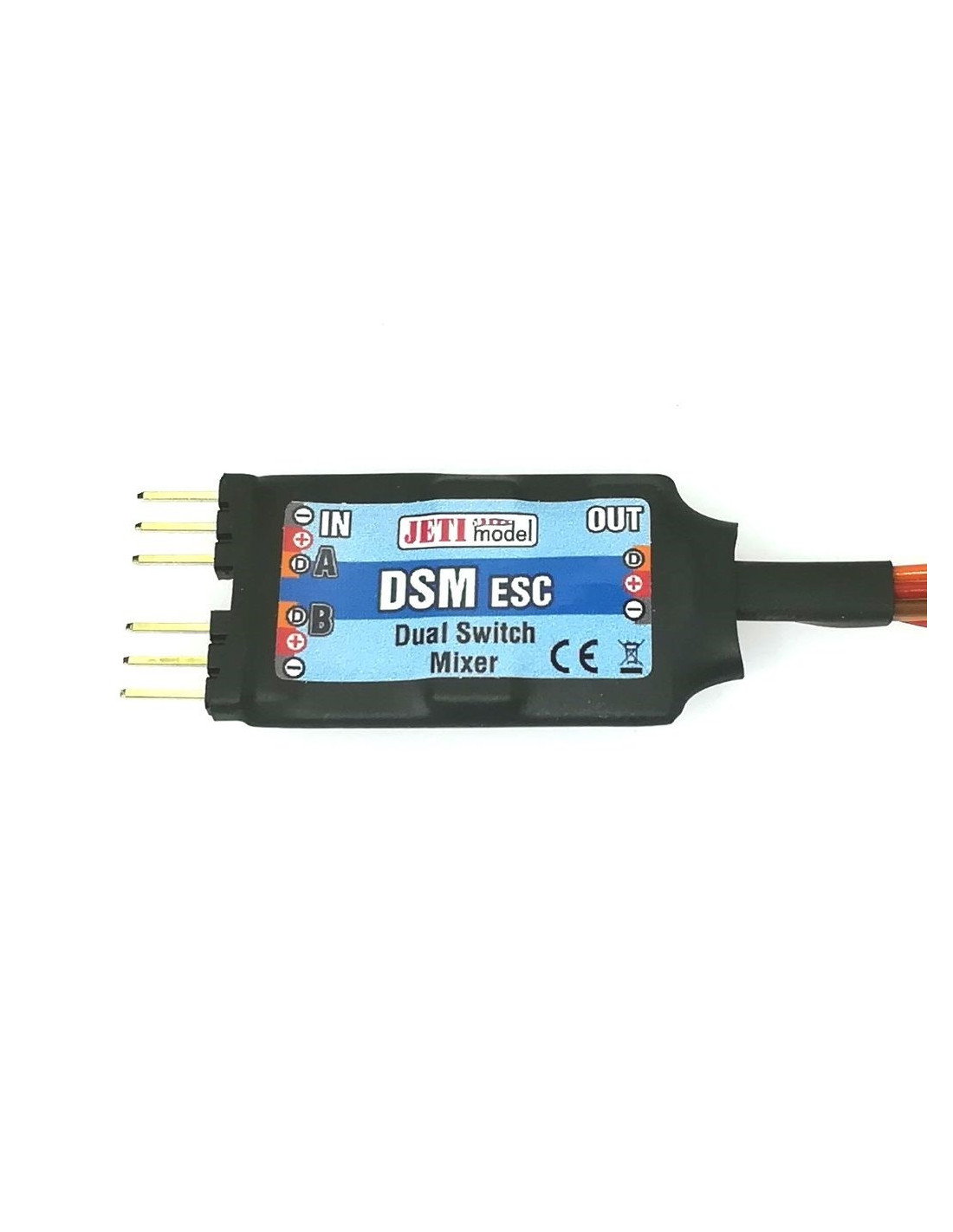

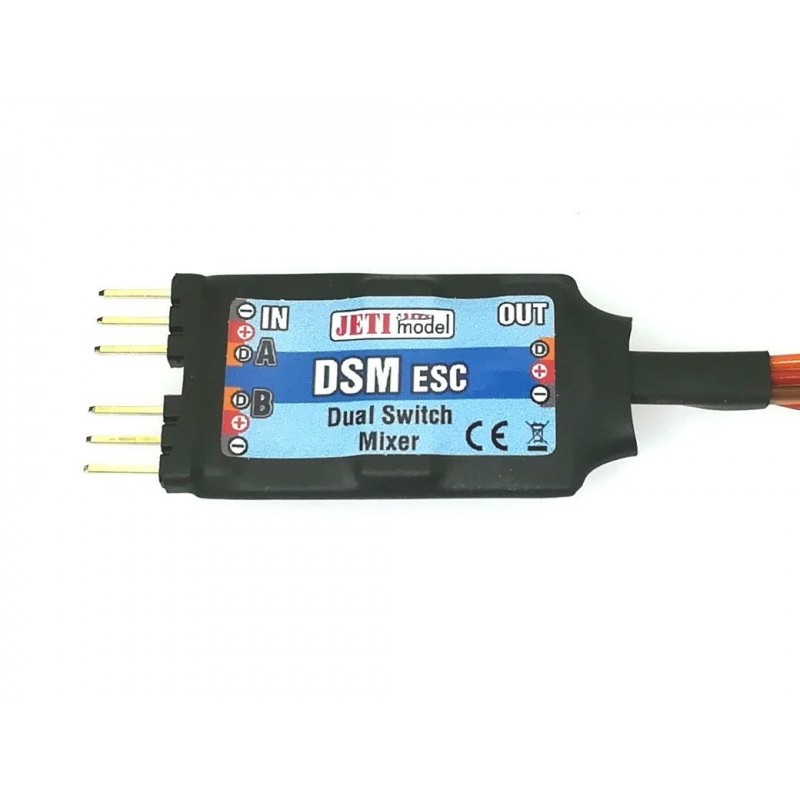

Dual power supply DSM ESC 10A Jeti

€62.42
Tax included
The Jeti DSM ESC is both a dual power supply and a magnetic switch, allowing you to connect two controllers with a BEC or one controller with a BEC and a receiver battery as input to power your receiver and servos.The module switches from one source to the other to power your receiver with the higher voltage.if you connect two controllers, the DSM ESC acts as a Y-cord for the signals.the whole unit can be turned on or off by simply holding a magnet in front of the magnetic switch that comes with the DSM ESC.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data

* Electronic diagram

Jeti DSM ESC

* Examples of use

Jeti DSM ESC

* Specifications

  • Input voltage : 5-8.4V
  • Output current (continuous) : 10A
  • Output current (peak) : 20A
  • No-load current consumption : 130 microA
  • Temperature range : -10°C to 85°C
  • Weight : 24g
  • Dimensions : 38x20x7mm

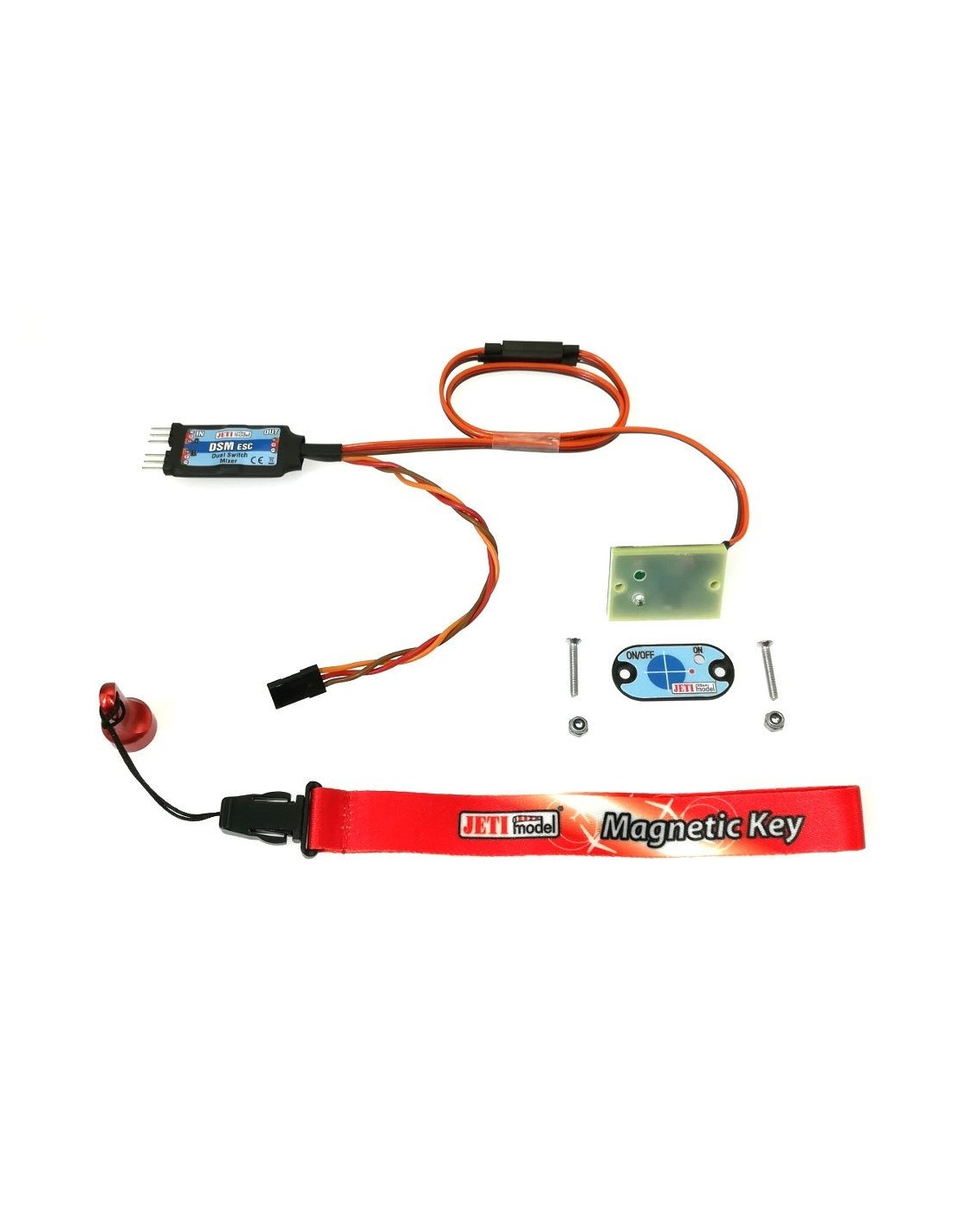

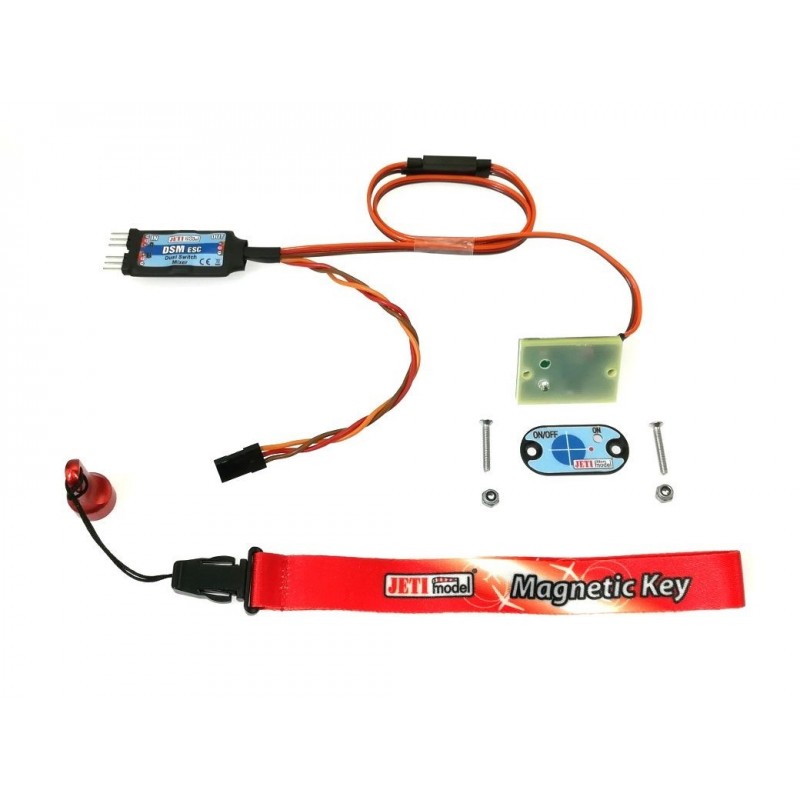

Contents of the delivery

Jeti DSM ESC

  • DSM ESC module
  • Magnetic switch
  • Magnet
308-J-DSM-ESC
8595245909116
8595245909116
