JETI - REX 12 ASSIST Duplex 2.4EX receiver JETI - FLASH RC

JETI - REX 12 ASSIST Duplex 2.4EX receiver JETI - FLASH RC

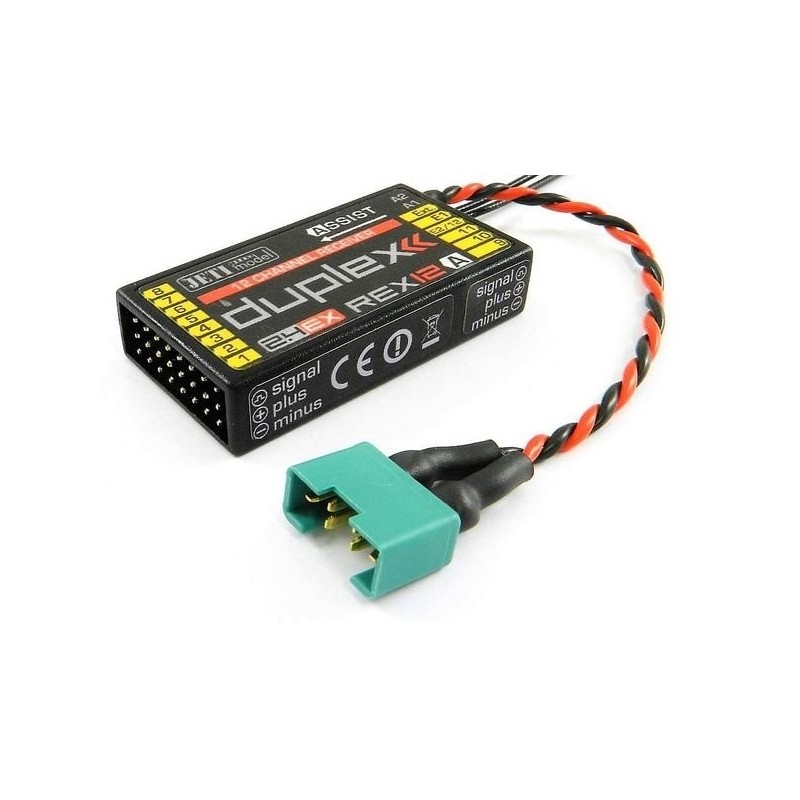

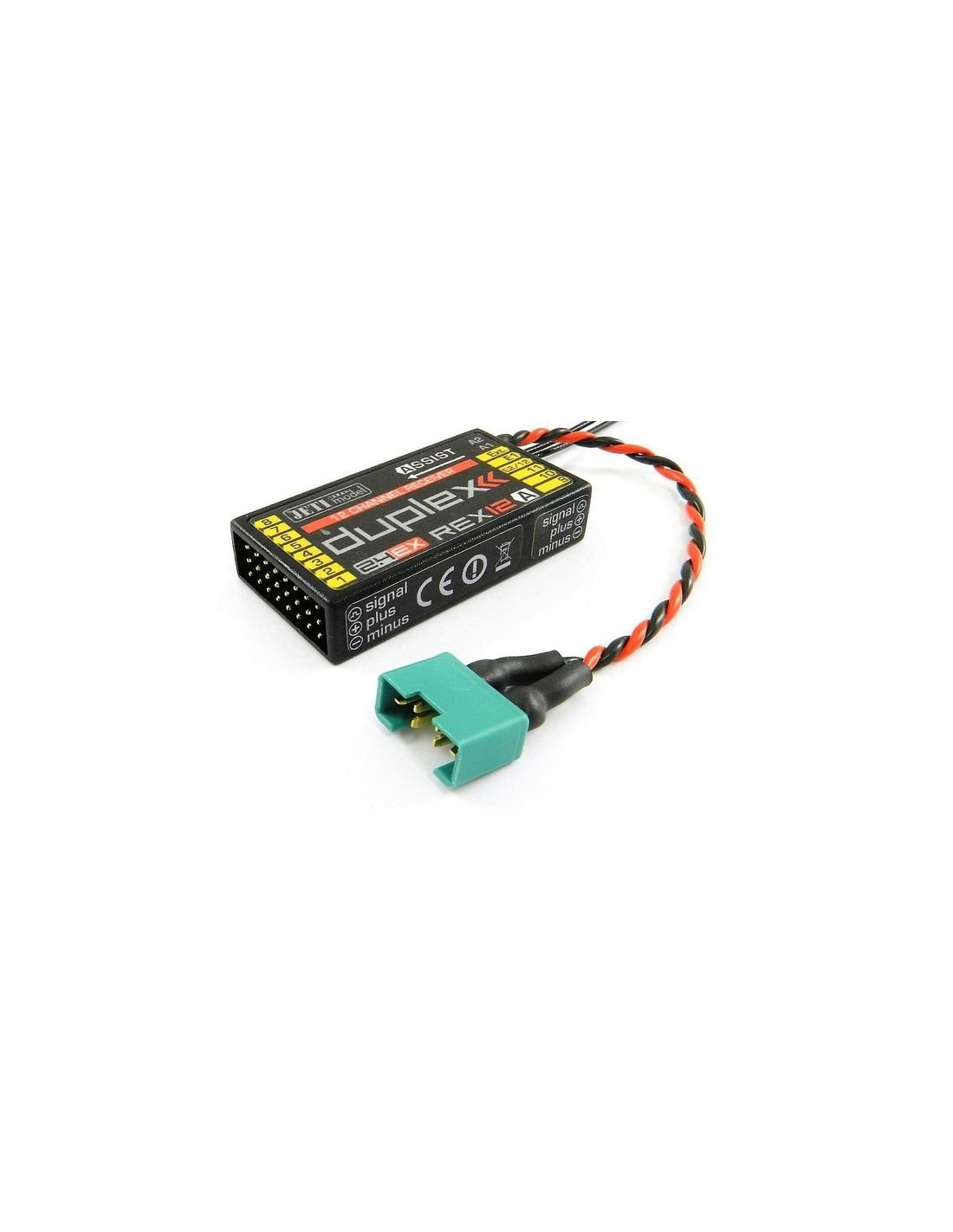

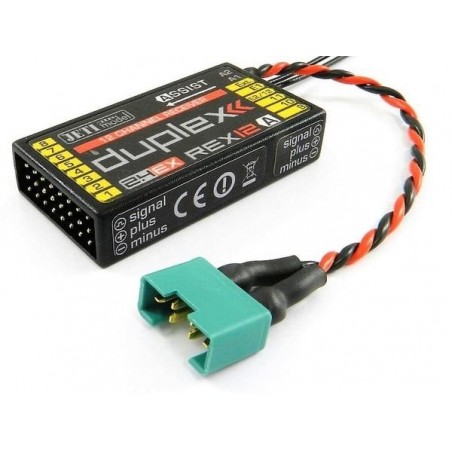

REX 12 ASSIST Duplex 2.4EX JETI receiver

Last items in stock

€187.42

Tax included

DUPLEX 2.4EX REX 7 Assist Receiver This JETI REX ASSIST receiver has an integrated 3-axis gyro for 3-axis stabilization of your model.integrated telemetry: 3-axis rotation angle, G-Force, temperature integrated ASSIST stabilization system with stabilization + heading hold + trainer mode for aircraft/glider and multicopter models. the stabilized EX bus signal can e.g. be connected to a CentralBox supported protocols: PPM, EXBUS, EX, ... programmable slot/socket functions accepts direct inputs compact dimensions 32-bit processor Full range Programmable via JETIBOX and wireless via DC / DS duplex transmitter

Technical data

Number of servo functions: 12
Number of EXT inputs: 1
Weight [g] 24
Dimensions [mm] 51 x 28 x 11
Telemetry Yes, see above
Temperature range [° C] -10 ... 85
compatible protocols DUPLEX 2.4GHz EX, EX Bus, UDI
Antenna length [mm] 2 x 400
Voltage range [V] 3.2 8.4
Current consumption [mA] 30
Satellite receiver connection No
Output power [dBm] 15
Receiving sensitivity [dBm] -106
Power supply socket: type MPX green 6 contacts

Reference 308-JDEX-RR12A

EAN13 8595245911553

MPN 8595245911553
