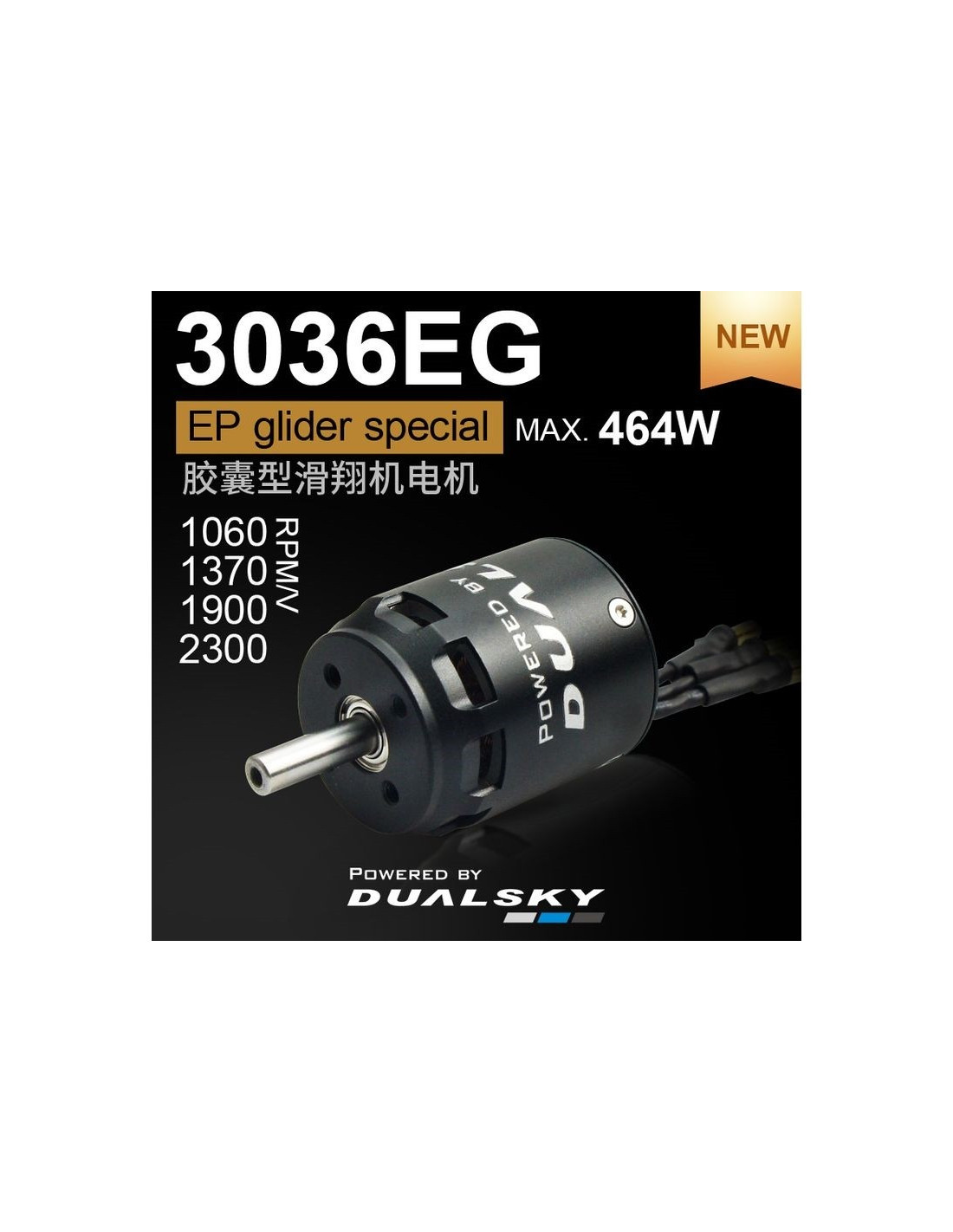

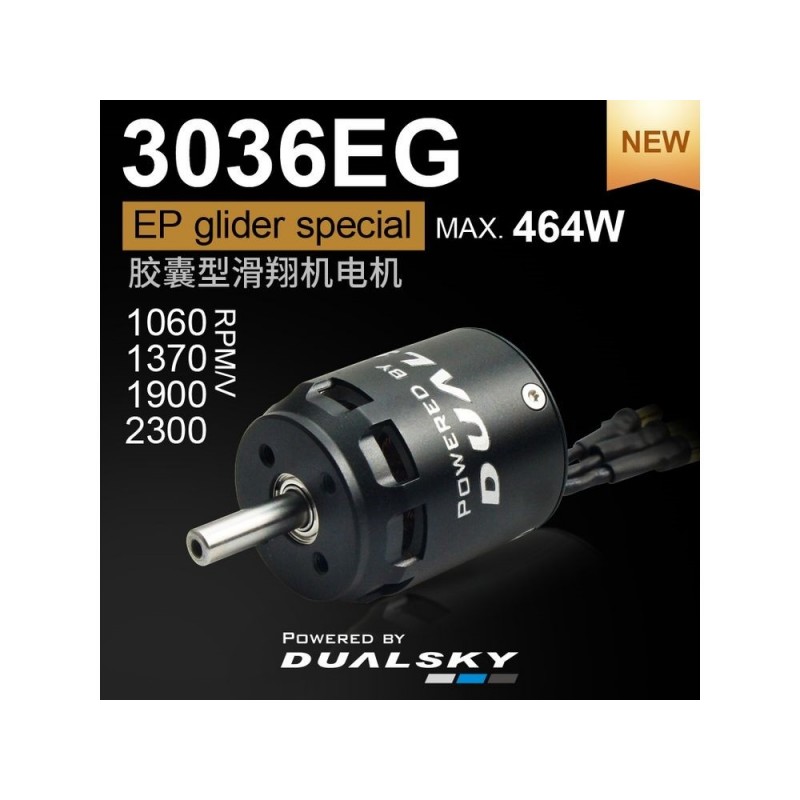

Dualsky XM3036EG-14 motor (89g, 1060kV, 464W)

Last items in stock

€66.66

Tax included

The Dualsky XM3036EG-14 motor is particularly suitable for gliders up to 1.6kg.

Dualsky was founded in early 2004.
Dualsky produces Xmotor brushless motors, Xcontroller brushless ESCs, Xpower high-speed Lipo batteries and other accessories.

Some details:

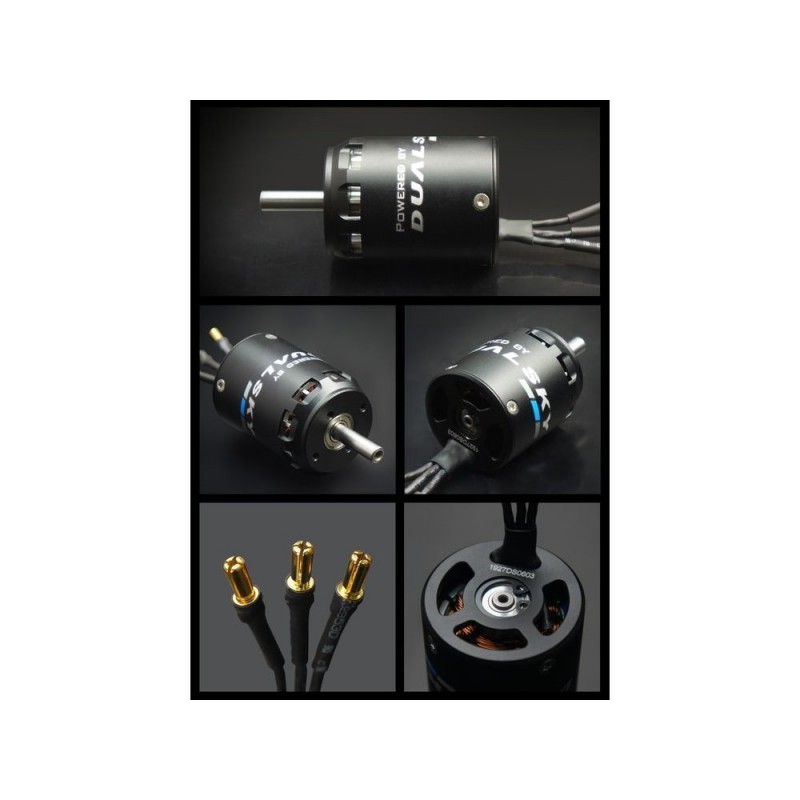

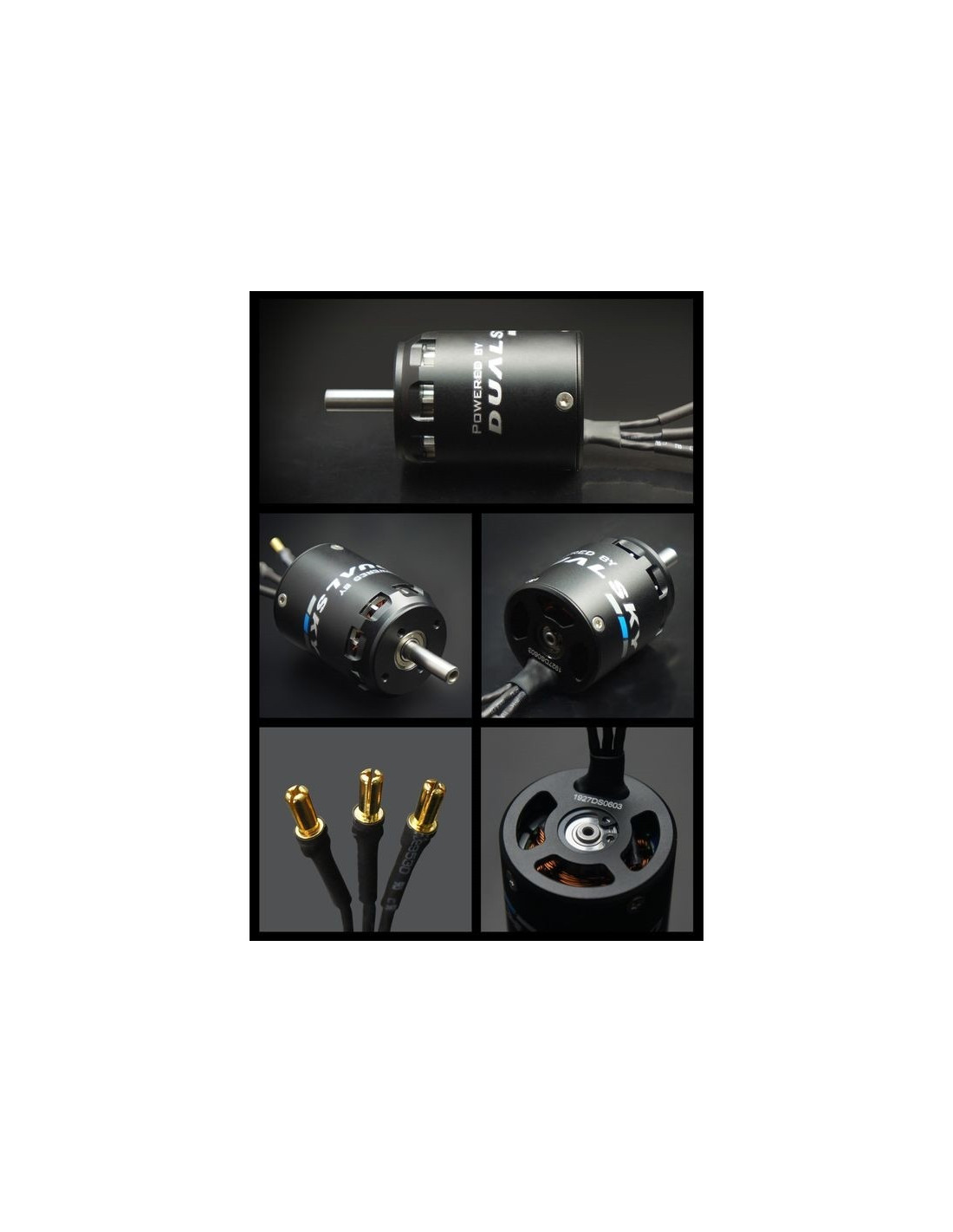

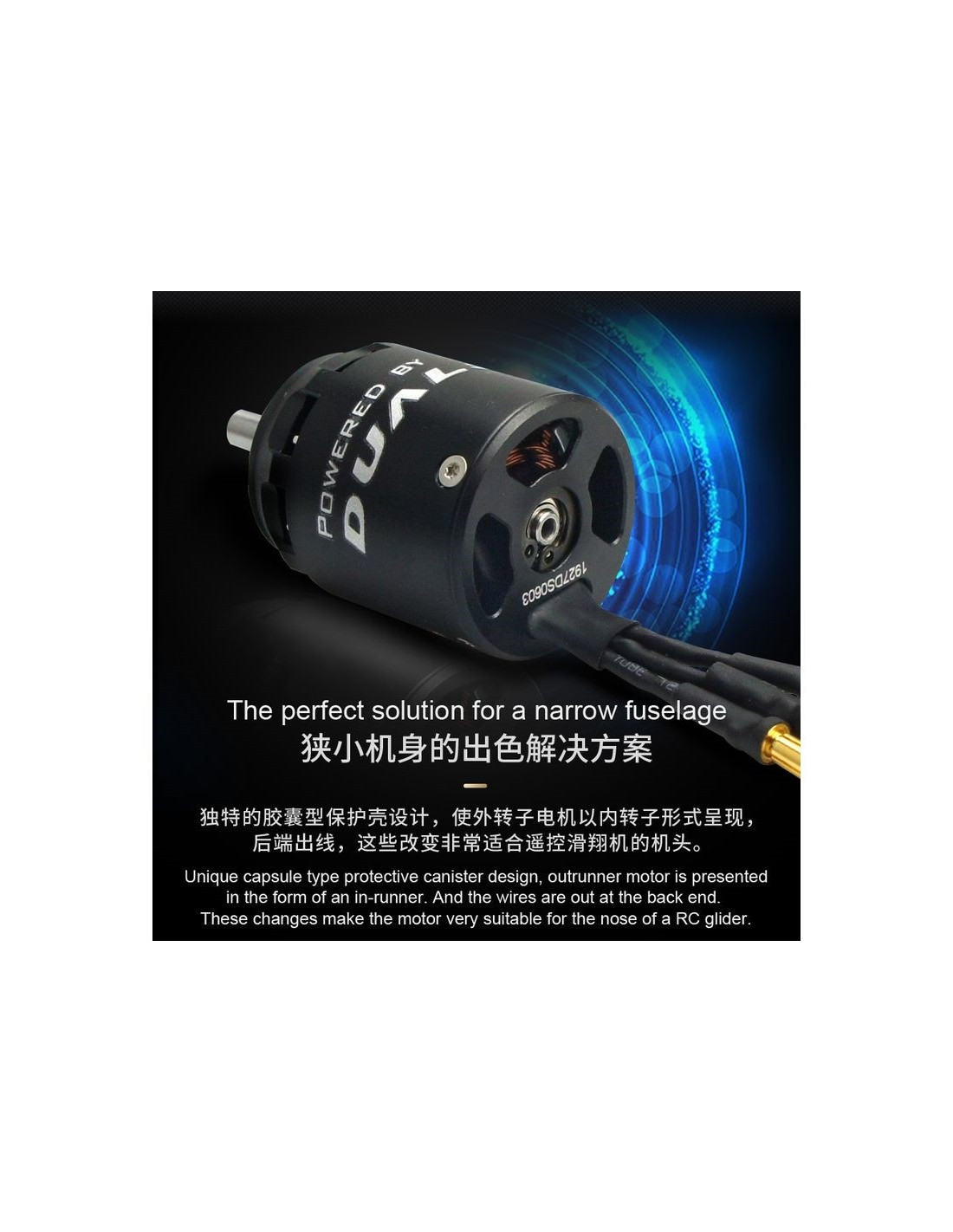

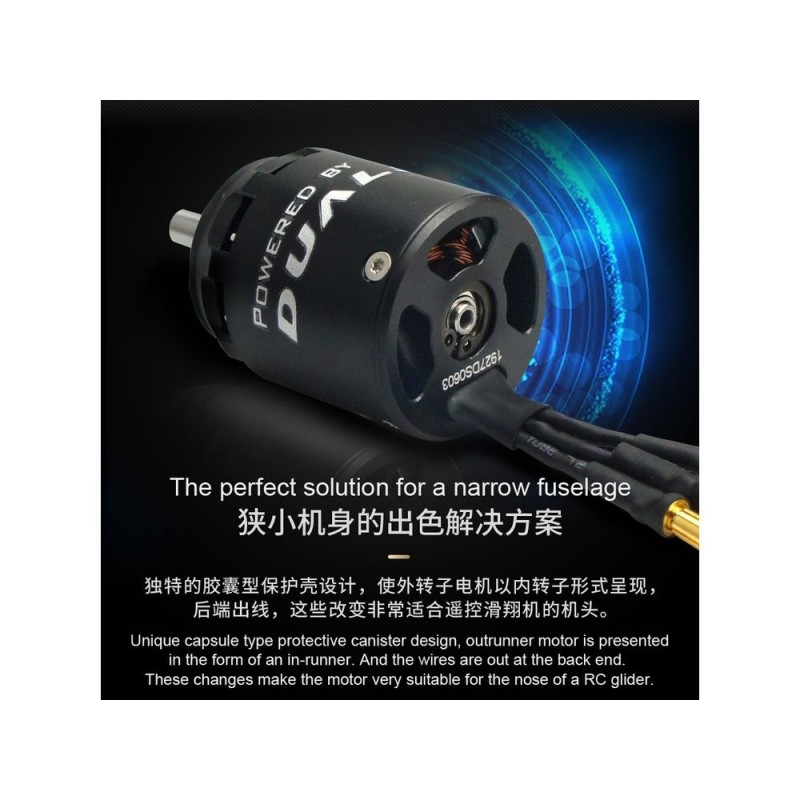

Encapsulated design for easy integration into the thin nose of gliders
Rear wire outlet

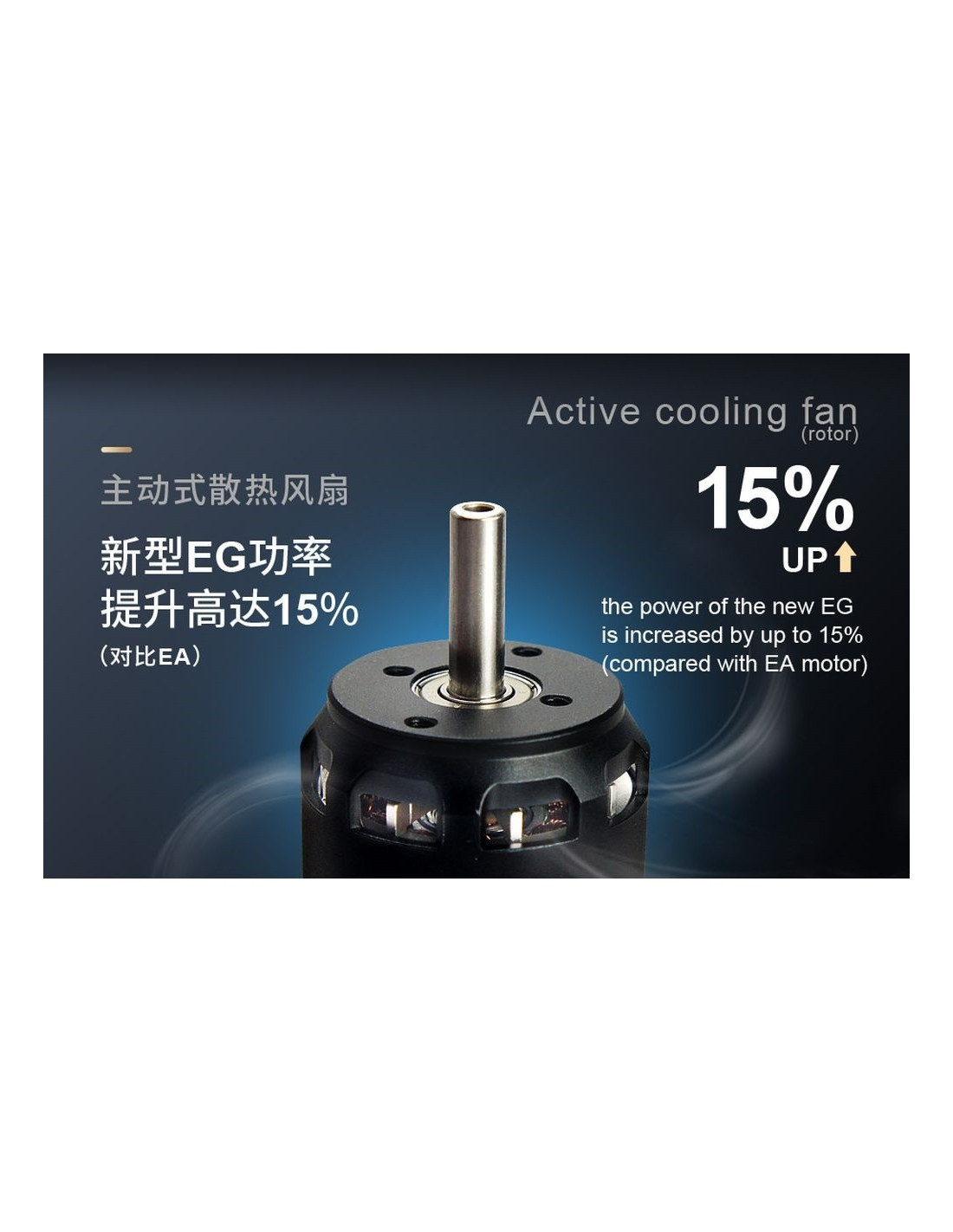

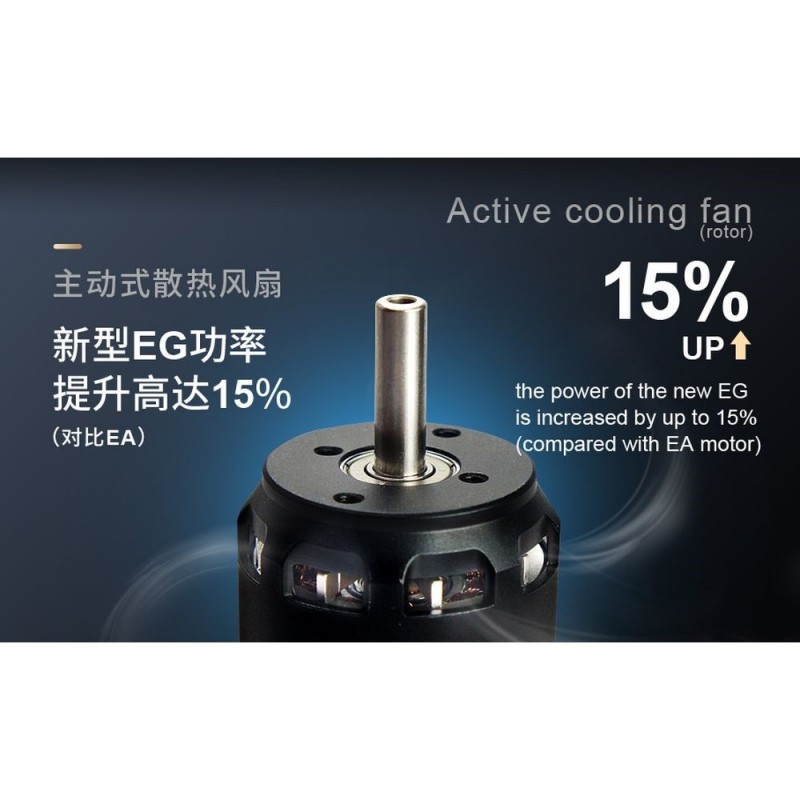

Integrated fan for optimized performance

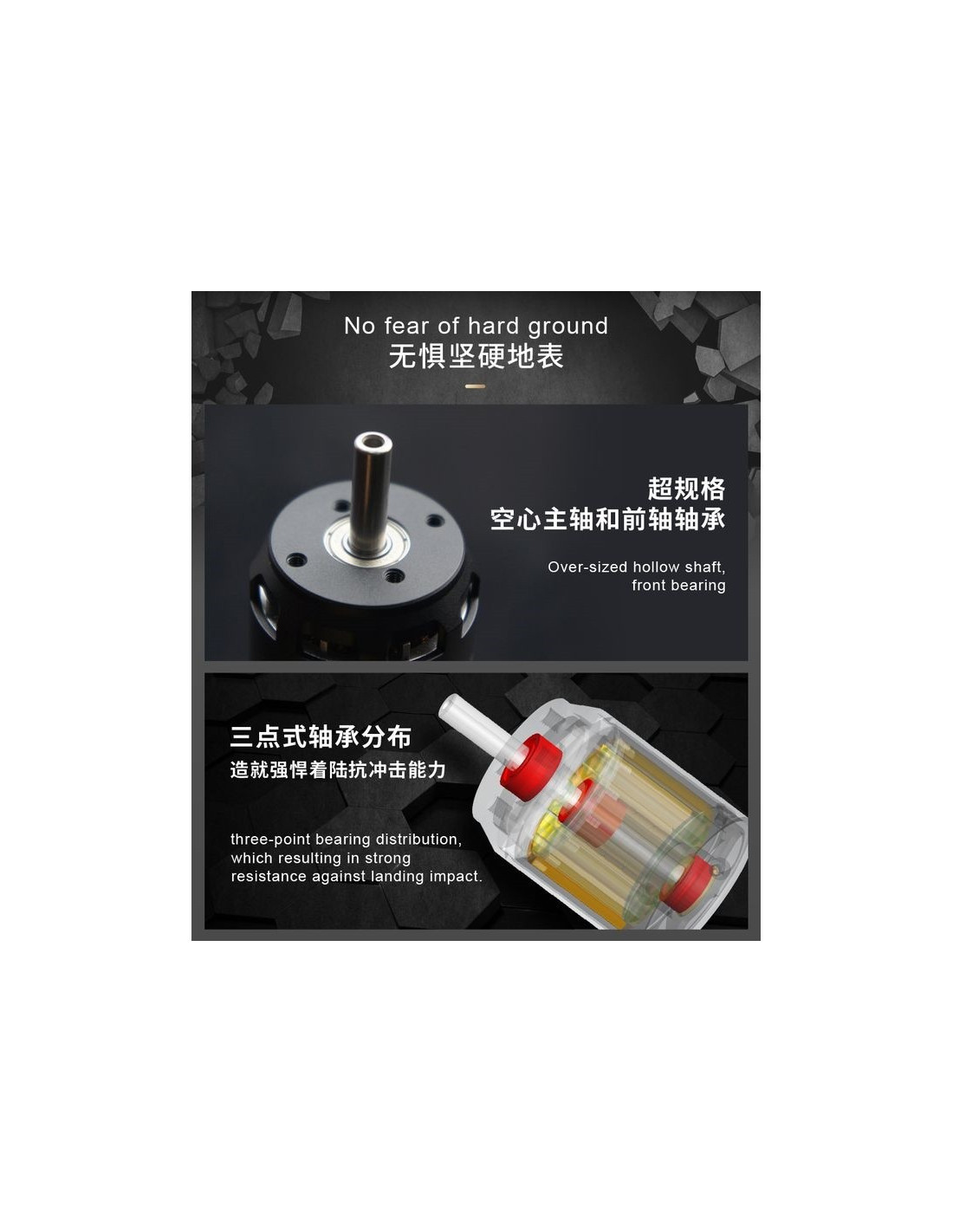

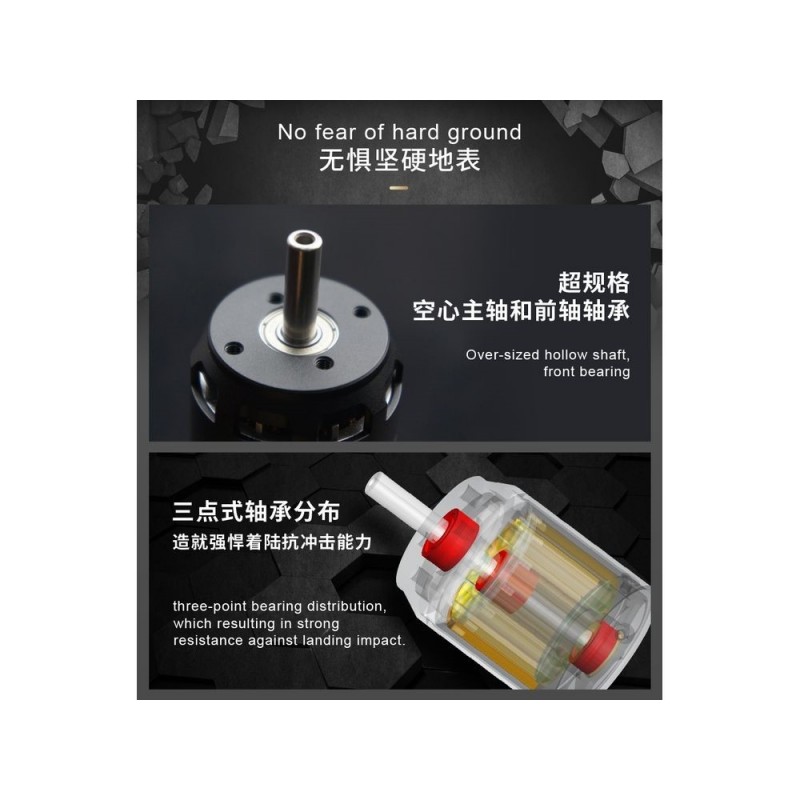

Axis mounted on 3 bearings along the length for better resistance when landing.
14-pole rotor made of curved magnets, 0.20 mm Japanese silicon laminated steel, offering high direct drive torque.
Uses 220 grade enameled wire and high temperature epoxy adhesive of the same level, with five-star quality overload resistance.

Technical Specifications:

Recommended application: Glider up to 1.6kg

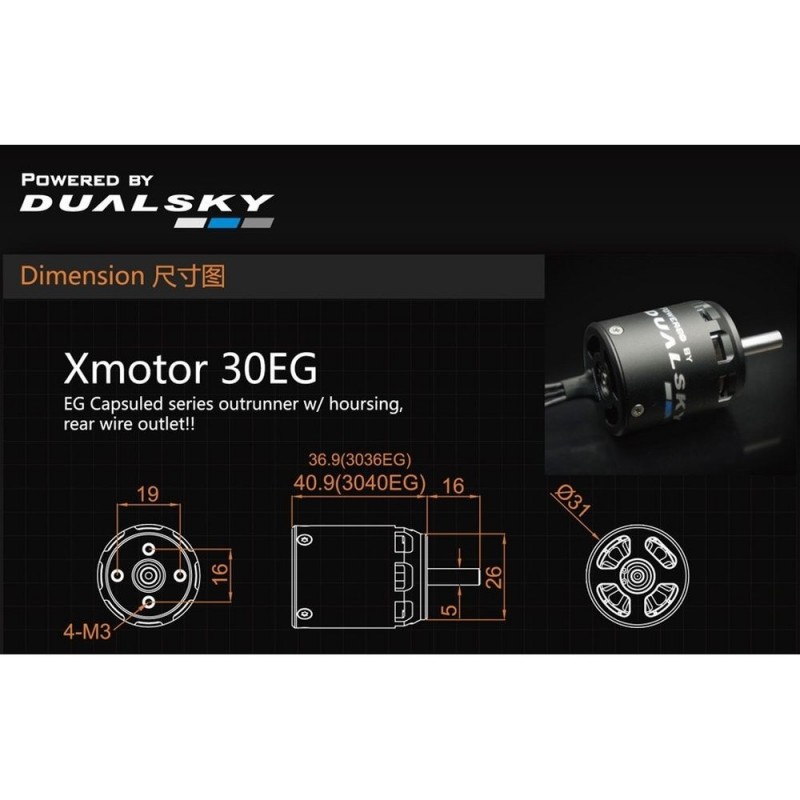

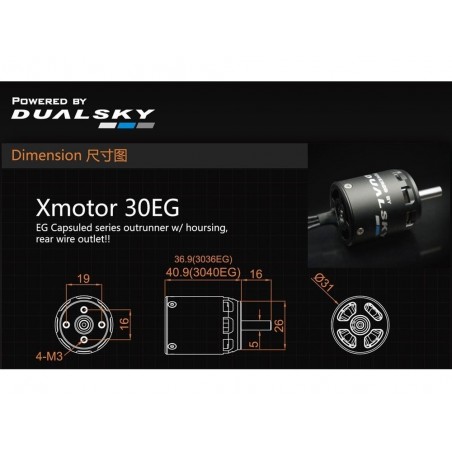

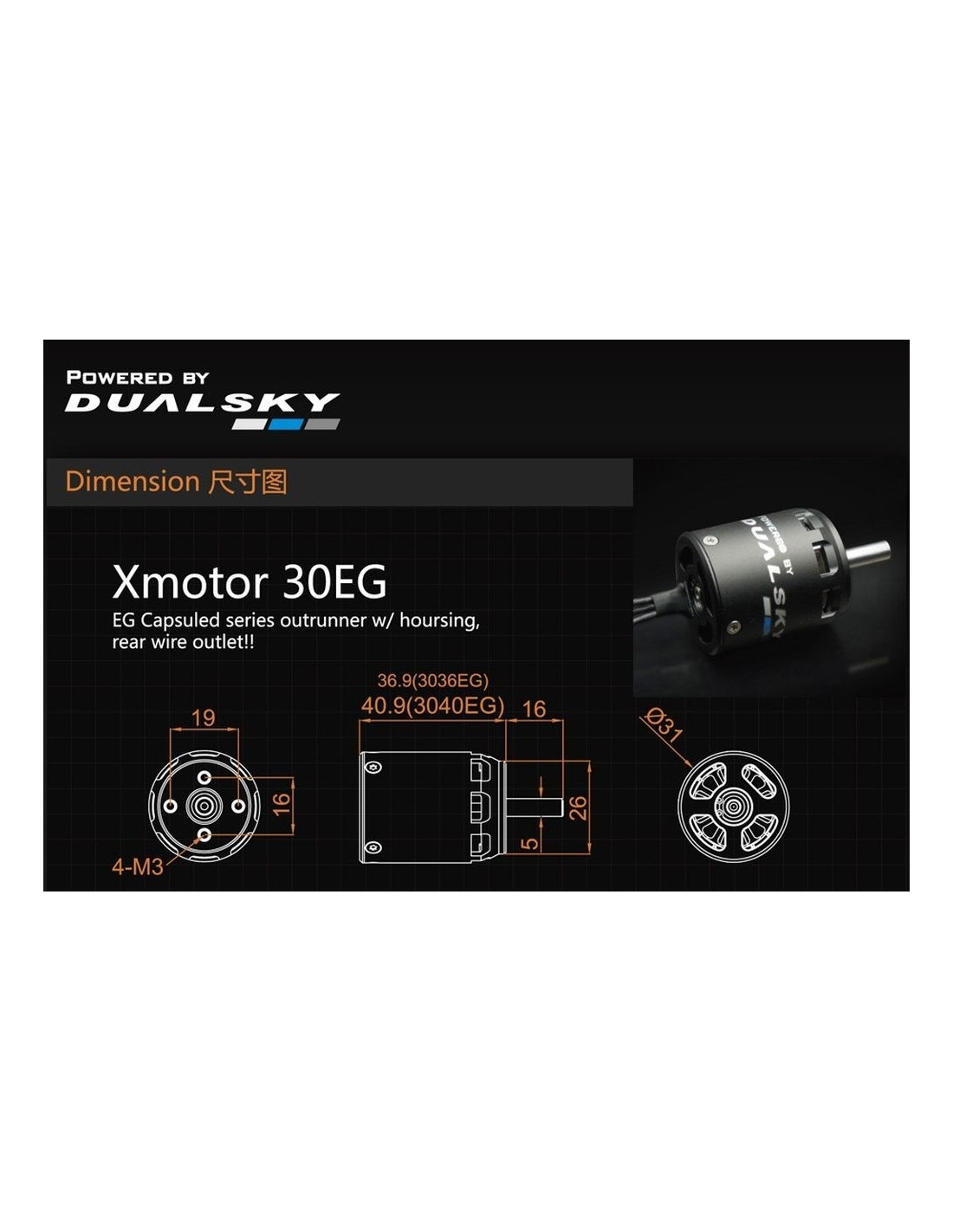

Diameter: Front 26mm, Body 31mm
Length: 36.9m
Weight : 89g
kV: 1060 rpm/V
Shaft diameter: 5,00mm
Connectors: DB3.5 (3 pairs)
Recommended voltage: 3S to 4S LiPo
Max current (15s) : 29A
Max power (15s) : 464W
Recommended propeller(s) : 3S 12x8 to 13x6
Recommended propeller(s) : 4S 10x6 to 11x7

Contents of the box :

(1) XM3036EG-14 motor
(3) Pair of DB3.5 connectors

Additional product(s) needed

Brushless controller 29A or more

Engine weight: from 100g to 599g
Motor power in Watts: 464
Revs/ minute Kv: 1060
Type of tree: standard

Reference 016-XM3036EG-14

EAN13 6941047120983

MPN 6941047120983
