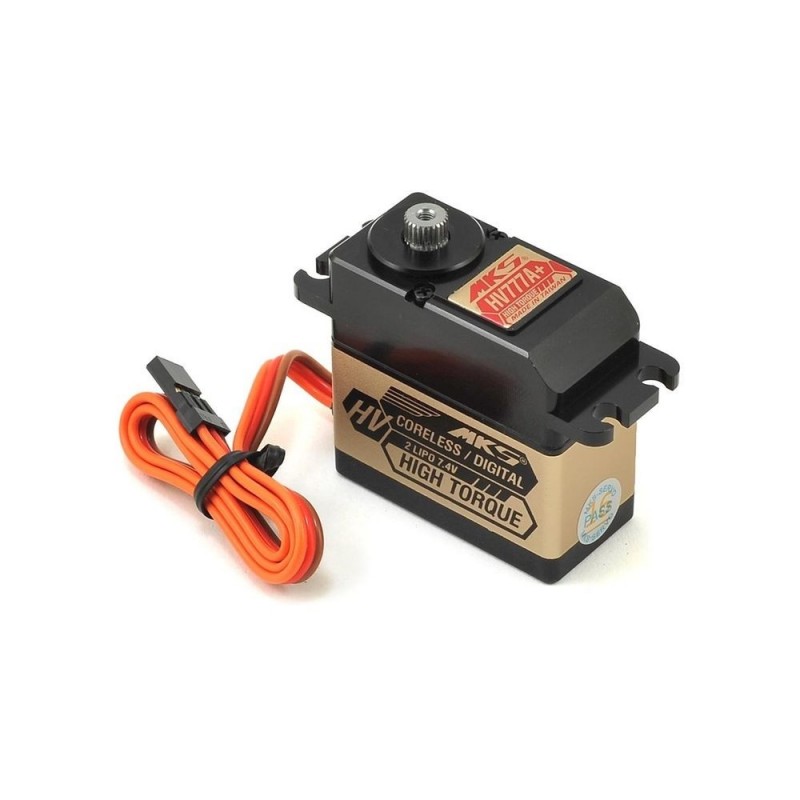

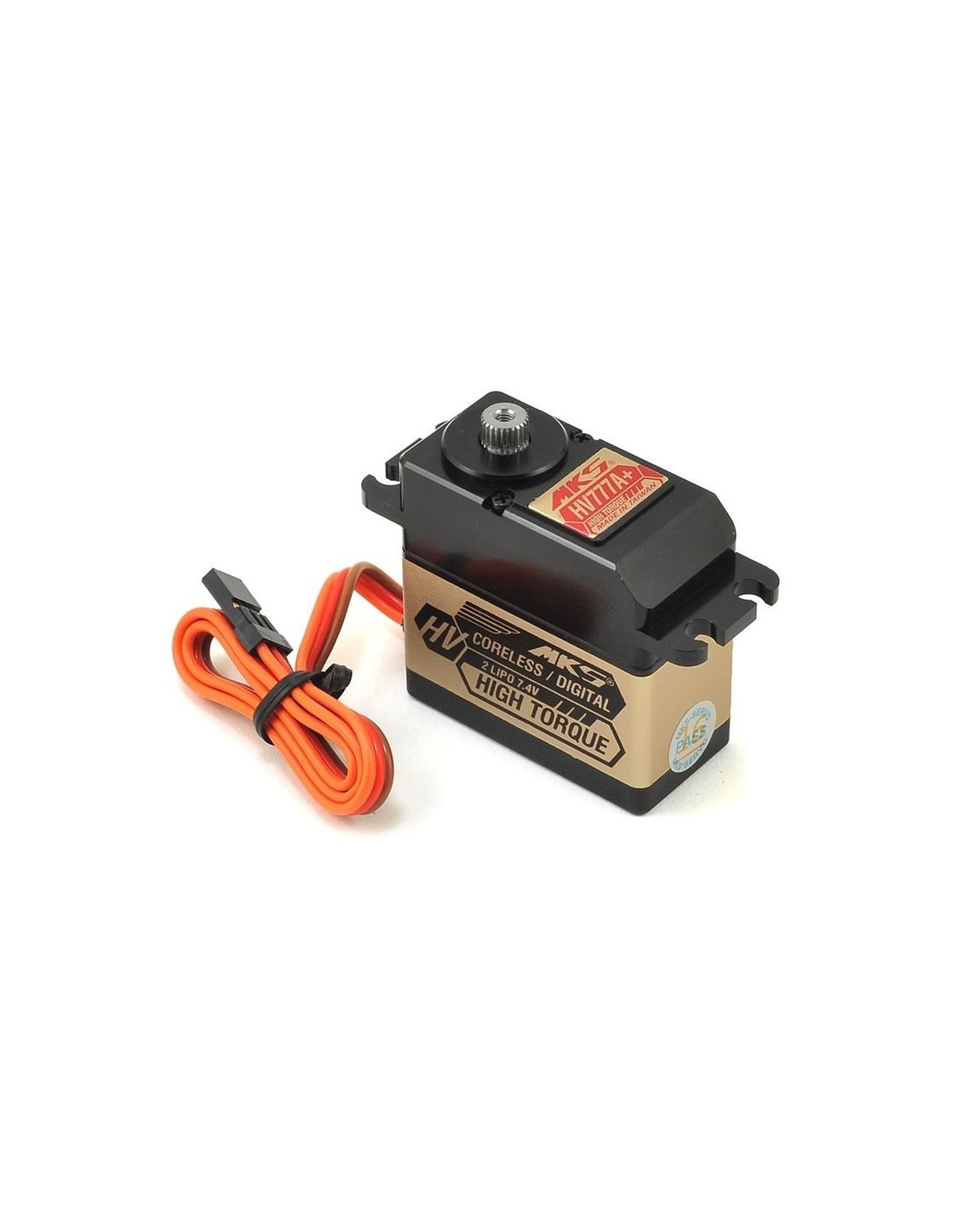

Standard Mks HV777A+ MG digital servo

€99.17
Tax included

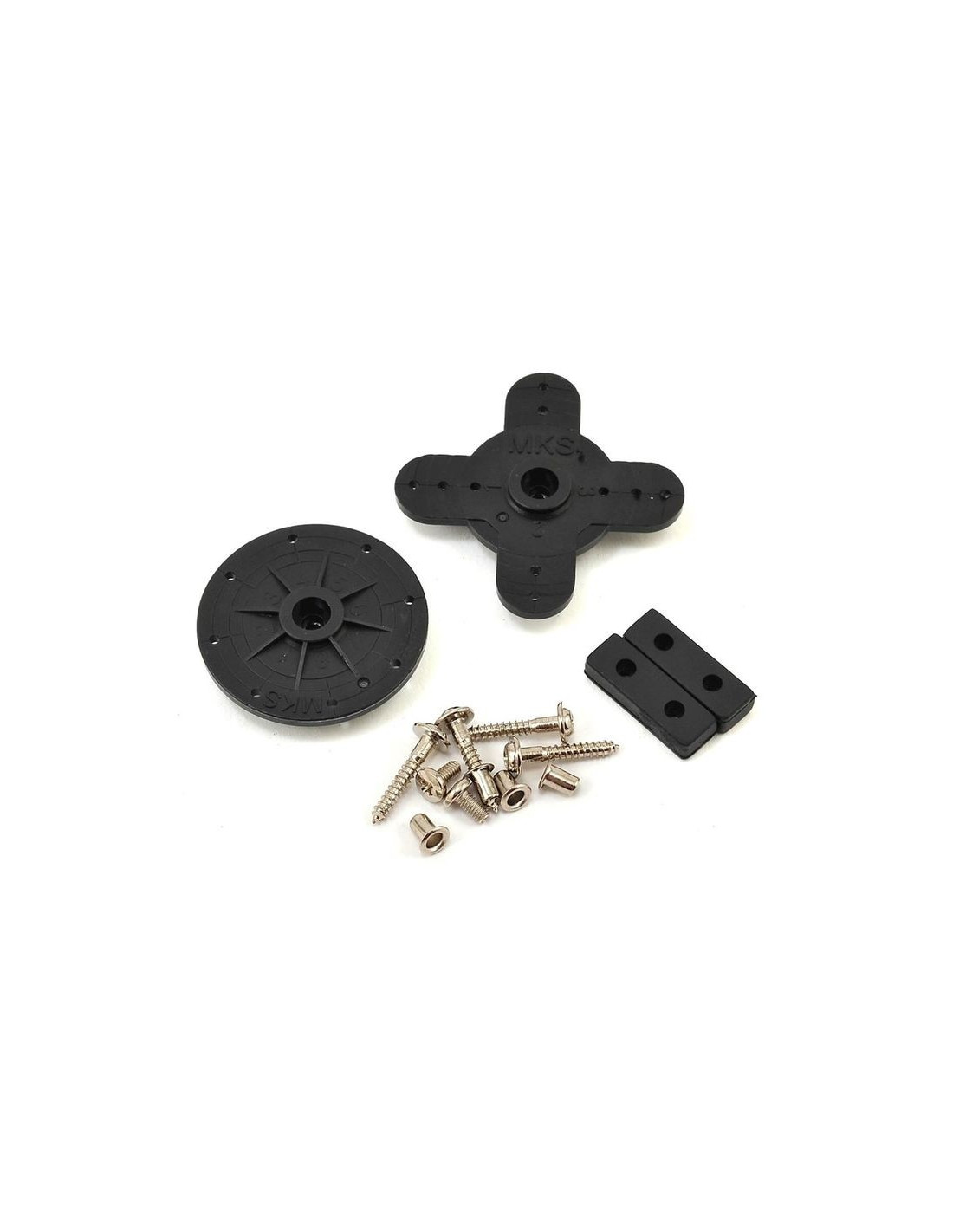

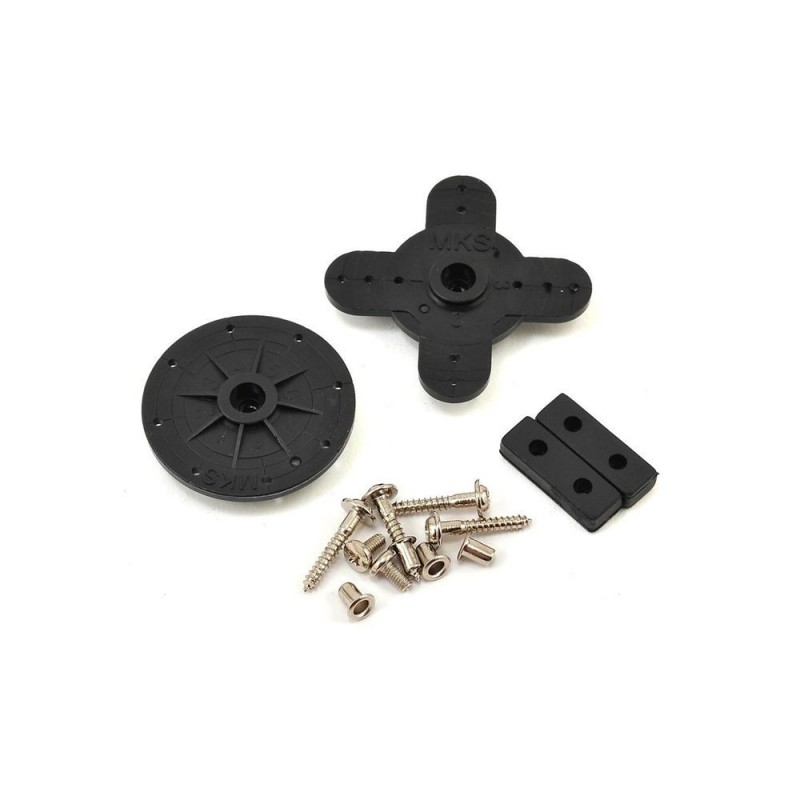

Standard digital servo, particularly suitable for large scale aircraft, jets or helicopter cyclic.this HV servo is very resistant, with aluminium housing and metal gears, and develops a colossal torque of more than 40kg under 2S LiPo.servo delivered with cross and circle rudder pedals + screws and shock absorbers (ref 128-O0002005).

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data

  • Torque : 29,5 kg-cm (6.0V), 36.5 kg-cm (7.4V), 40,4 kg-cm (8.2V)
  • Speed : 0.13 s (6.0V), 0.11 s (7.4V), 0.10 s (8.2V)
  • Weight : 75.45g
  • Dimensions: 40 x 20 x 40 mm
  • Supply voltage: 4.8 - 8.4 V DC Volts (2S Lipo)
  • Implosion width/ Operating frequency: 1520μs / 333hz
  • 2 bearings
  • Coreless Japan motor
  • Sprockets : Chrome-Titanium Alloy
  • Aluminum housing

Dimensions :

Differences between HV777 and HV777A+ :

Product

HV777

HV777A+

Torque

28 kg-cm (6.0V)

36.5 kg-cm (7.4V)

38 kg-cm (8.2V)

29.5 kg-cm (6.0V)

36.5 kg-cm (7.4V)

40.4 kg-cm (8.2V)

Speed

0.14 s (6.0V)

0.11 s (7.4V)

0.10 s (8.2V)

0.13 s (6.0V)

0.11 s (7.4V)

0.10 s (8.2V)

Weight

81.4g

75.45g

Dimensions

40 x 20 x 45 mm

40 x 20 x 40 mm

Operating Voltage

4.8 ~ 8.4 V DC Volts
(2S Lipo un-regulated )

4.8~8.4 V DC Volts
(2S Lipo un-regulated)

Working Frequency

1520μs / 333Hz

1520μs / 333Hz

Dead Band

0.0008ms (Default)

0.0008ms (Default)

Bearing Type

2* Ball Bearing

2* Ball Bearing

Motor Type

Japan High Quality Coreless Motor

Japan High Quality Coreless Motor

Gear Type

Metal Alloy Gear

Metal Alloy Gear
Thickness in mm (Servos)
20
Torque in kg.cm (servos)
40.4
Speed sec / 60° (servos)
0.1
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
75.45
128-S0011007
4710150350271
4710150350271
