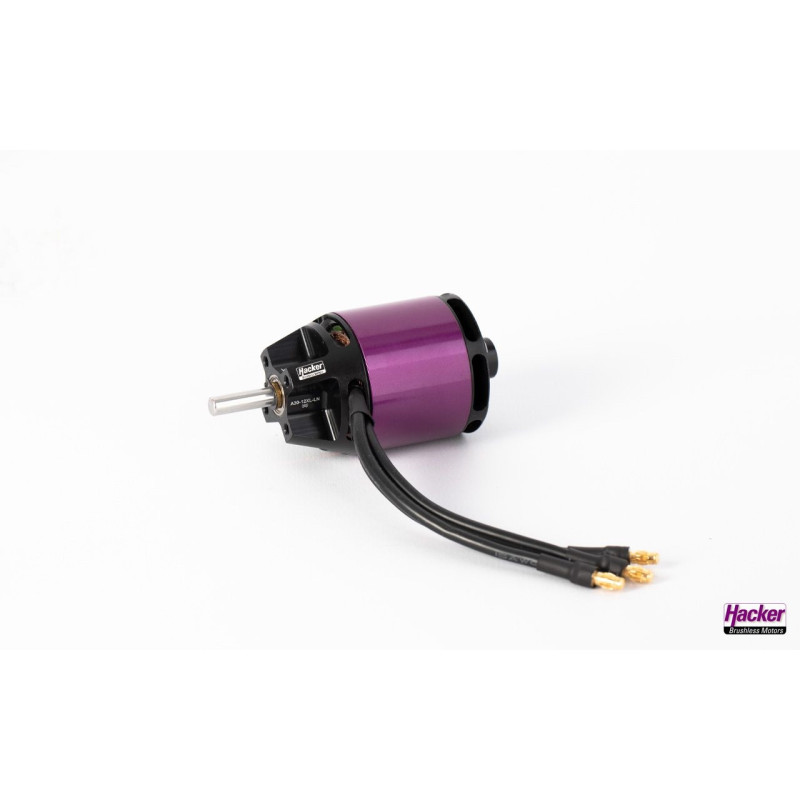

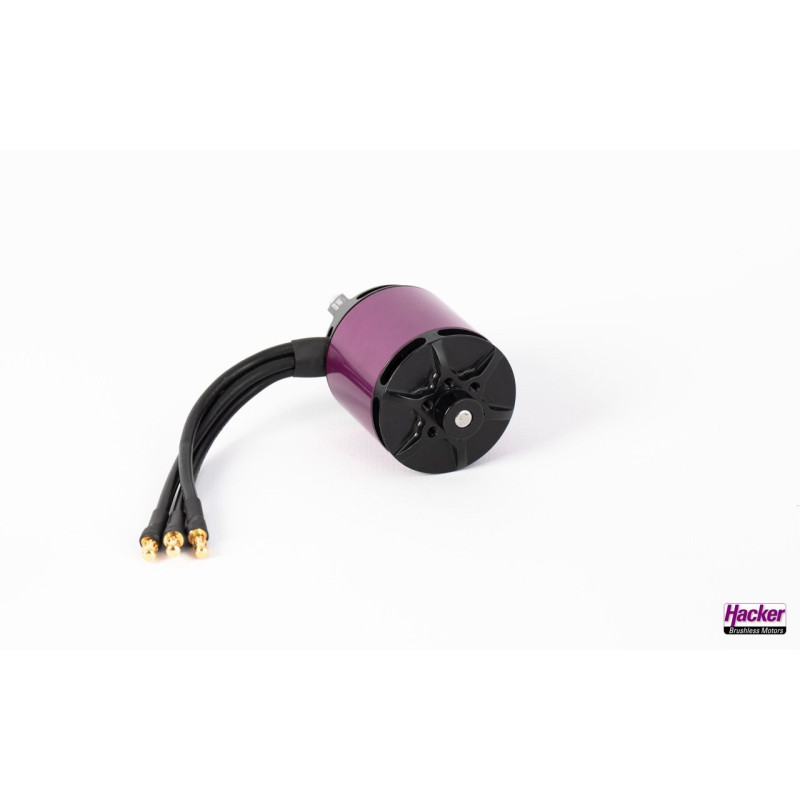

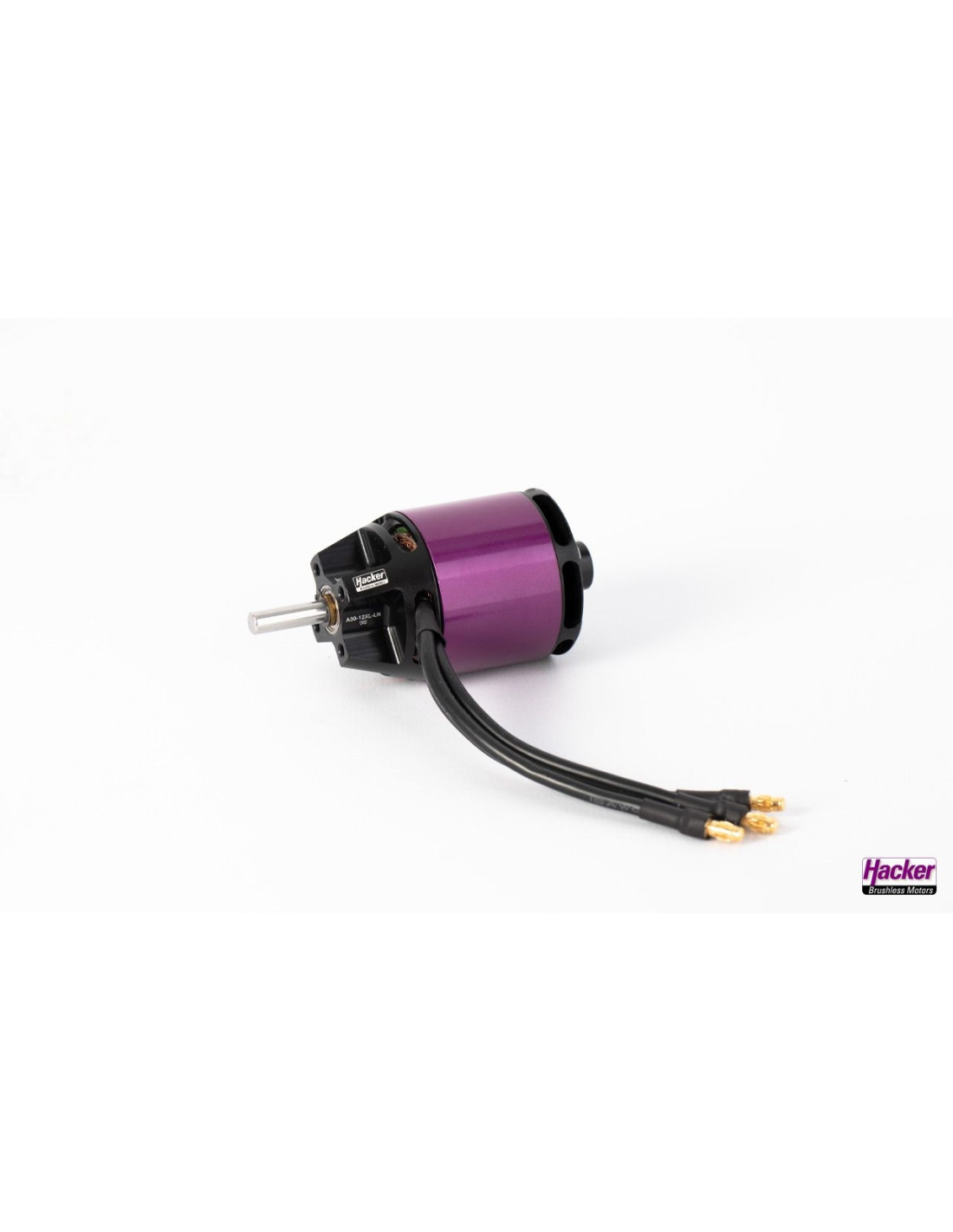

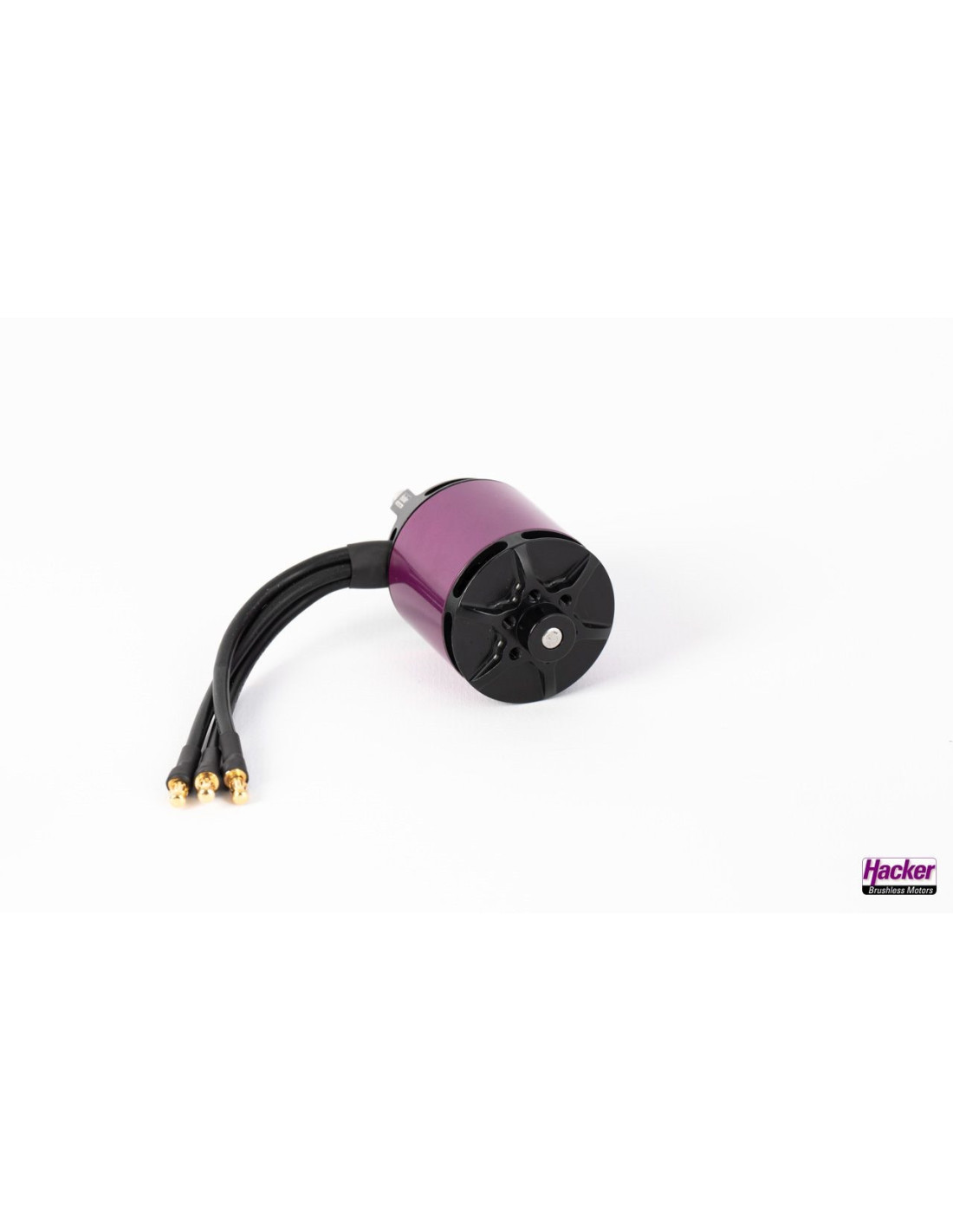

Hacker A30-12 XL-LN brushless motor (190g, 700kv,650W)
Hacker A30-12 XL-LN brushless motor (190g, 700kv,650W)
Hacker A30-12 XL-LN brushless motor (190g, 700kv,650W)
Hacker A30-12 XL-LN brushless motor (190g, 700kv,650W)
Hacker A30-12 XL-LN brushless motor (190g, 700kv,650W)
Hacker A30-12 XL-LN brushless motor (190g, 700kv,650W)

Hacker A30-12 XL-LN brushless motor (190g, 700kv,650W)

Last items in stock
€87.49
Tax included

The A30-LN series has been specially developed for glider models with a narrow fuselage. Since the fuselage becomes significantly thicker a few centimeters beyond the motor frame, a compact, high-torque outrunner can be used in direct drive. Thanks to the high efficiency and the integrated fan, the motor remains cool for a long time, even in narrow, poorly ventilated hulls.

This weight-optimized high-end motor with a weight of only 190g is often used in glider models up to 3.2 kg. Of course, the A30-12 XL-LN V4 kv700 is also perfectly suited for powerplanes and sports planes up to about 1.8 kg takeoff weight, when tightened under the hood.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option



Features:

Specifications
Power range [W] 650
Poles 14
Turns 12
Idle current (I0) at 8.4V [A] 1.5
Internal resistance (Ri) [Ohm] 0.034
Recommended timing [°] 20 - 25
Recommended timing [kHz] 8
Controller recommendation 70
No-load speed per volt (kv) 700

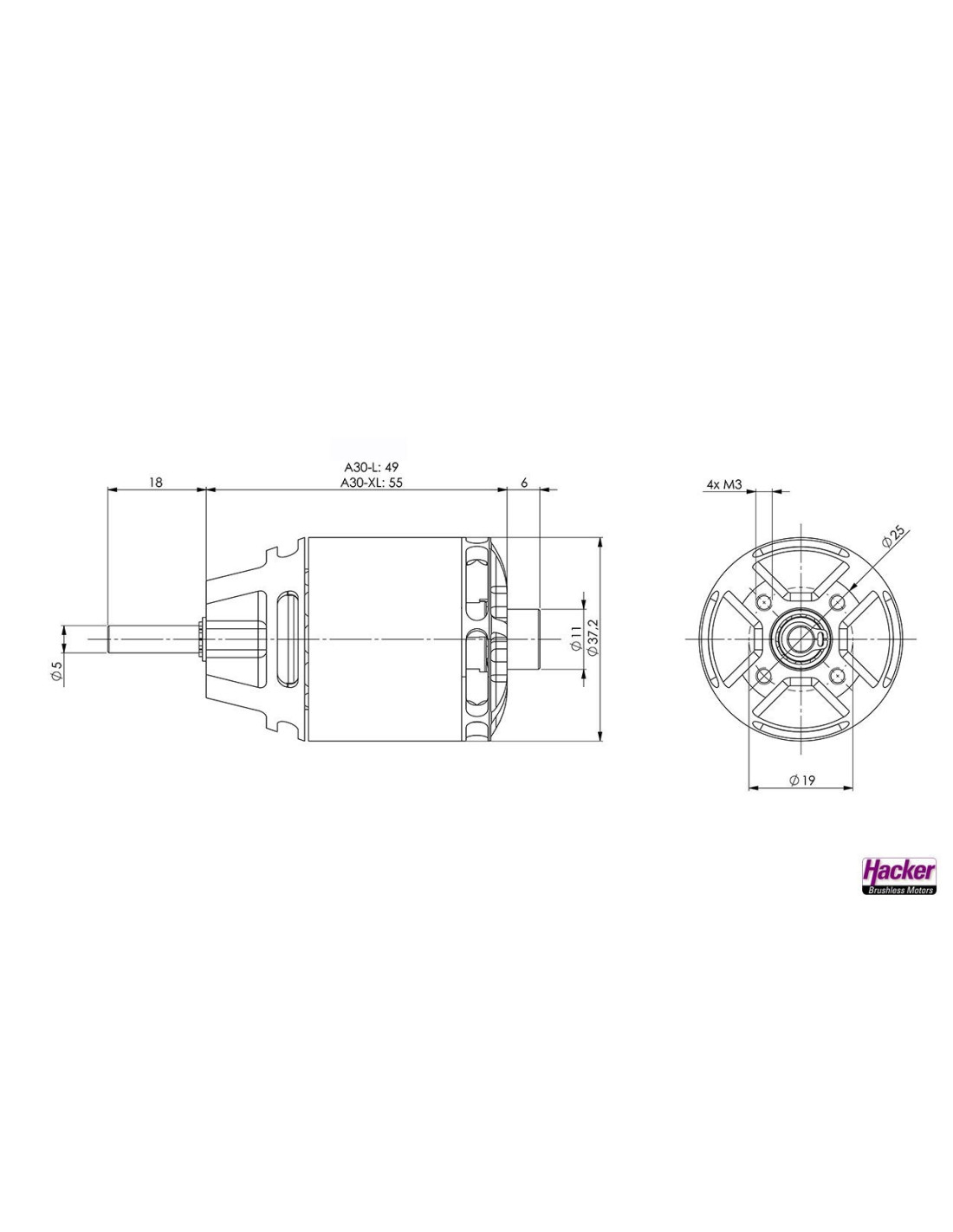

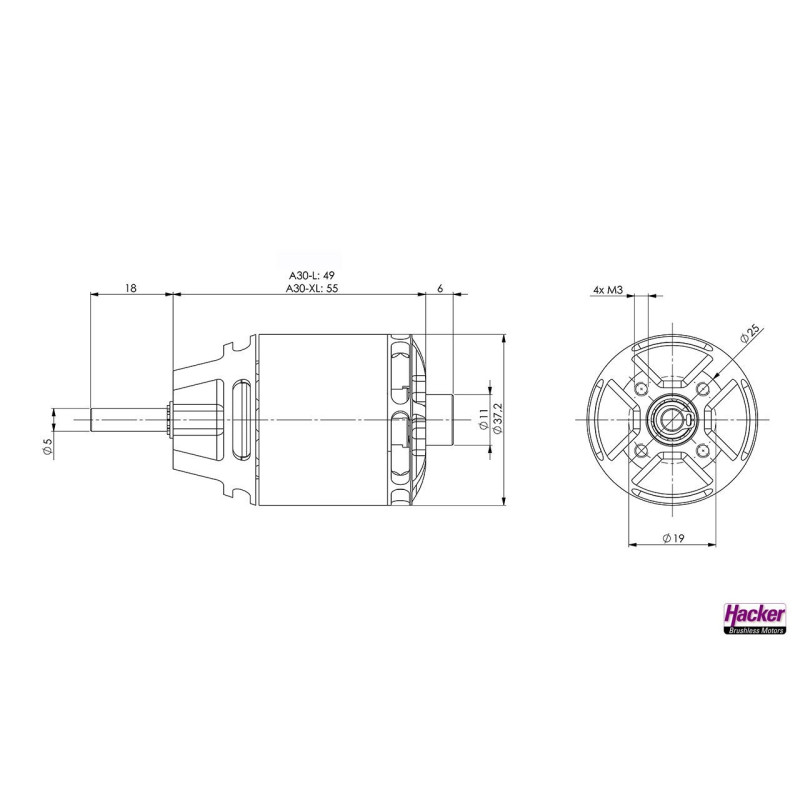

Dimensions and weights
Weight [g] 190
Length [mm]/[in] 55
Outer diameter [mm]/[in] 37,2
Shaft diameter [mm]/[in] 5


Scope of delivery
Promoters Nein
Mounting cross Nein
Gold plug mm (soldered) 3,5
Rear mounting possible Nein
Front mounting possible Ja

102-10109256
4250320271635
4,25032E+12
